Transfer slab Load as point load
to the edge of wall or beam which supports slab. Slab where the
loads are converted as Point Loads, will not be included in analysis
of main member and separate slab model and analysis results will
be created. Membrane type slab is not applicable to this function.
¢Æ Call
New
[Load] Tab >
[Specific] > [Slab Load Transfer]
Delete
Work
Tree
[Analysis] Tab >
[Loading Tool] > [Loading Point] > [List]
> Right-Click > Delete
|
|
¢Æ Detail Description
Select
Slab : Select story which requires conversion of Point
Load or slab analysis of separate gravity load.
Select Support : Select
edge of wall or beams which support slab which requires
conversion of Pint Load or slab analysis.
Transferred
Data : Select processing method of existing Loading
Data and naming rule of Load Point Group when slab load
is converted to Point Load.
[Transfer
Slab Load]

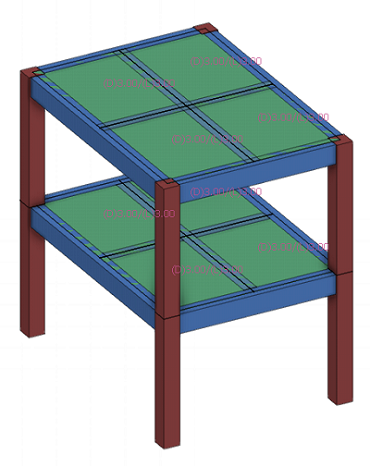

(a) Main Structure model (b)
Slab Analysis Model
[Analysis
Result]

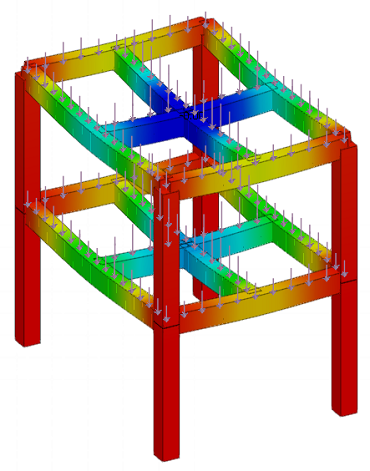

During
the analysis, slab creates its own analysis model where
gravity loads are acting on the corresponding supporting
members to output results.
|
|
