Work Plane

Create work plane.



ΆΖ Call

Blue_Square.gifNew

[Define] Tab > [Reference] > [Work Plane]

Blue_Square.gifDelete

Work Tree [Model] Tab > [Reference] > [Work Plane] > [List] > Right-Click > [Delete]



ΆΖ Detail Description


Three Points

Create a work plane which is defined by three selected points.

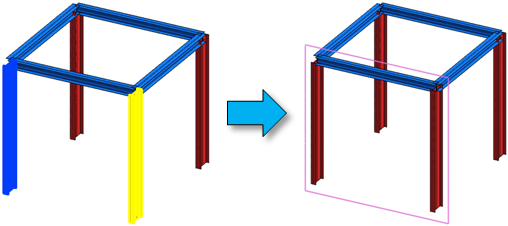

Two Edges

Create a work plane which is defined by two edges.

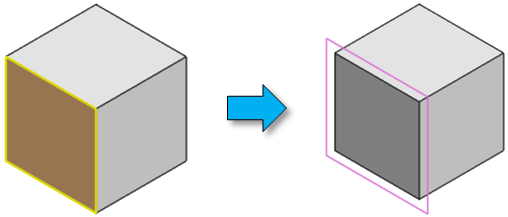

On Plane

Create a work plane on a selected plane.

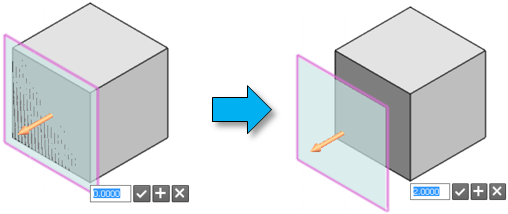

Offset from Plane

Create a work plane parallel with a selected plane at a specified distance in the normal direction to the selected plane.

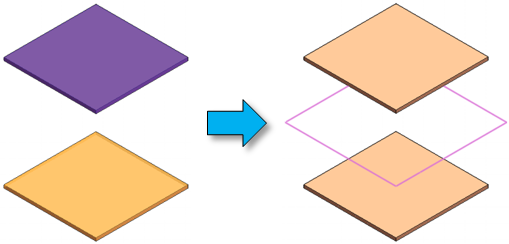

Between Two Planes

Create a work plane between two selected plane.

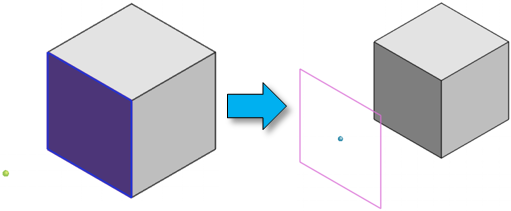

Plane and Point

Create a work plane which passes through a selected point and is parallel with a selected plane.

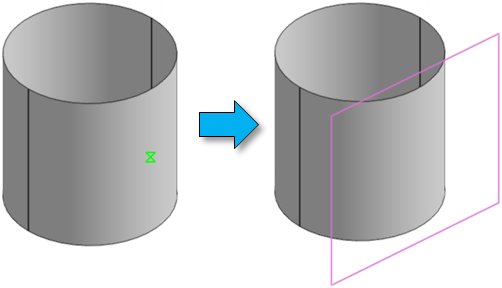

At Surface

Create a work plane which is tangent to a selected point at surface.

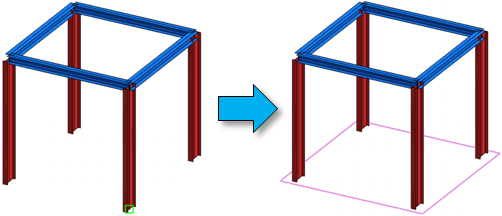

At Curve

Create a work plane which passes through a selected point and perpendicular to selected line member.
