[Interface] Tab > [3D CAD Program] > [PDMS] > [Export]

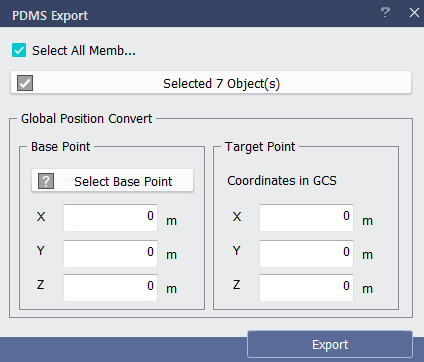

< PDMS Export Dialog >

Define the base point midas nGen where the target point of PDMS to be exported.

Base Point : Define base point of midas nGen by selecting directly from the model view or input the coordinates manually.

Target Point : Define the target point of PDMS file.

Click 'export' to access the dialog where the section properties of exported file can be edited.

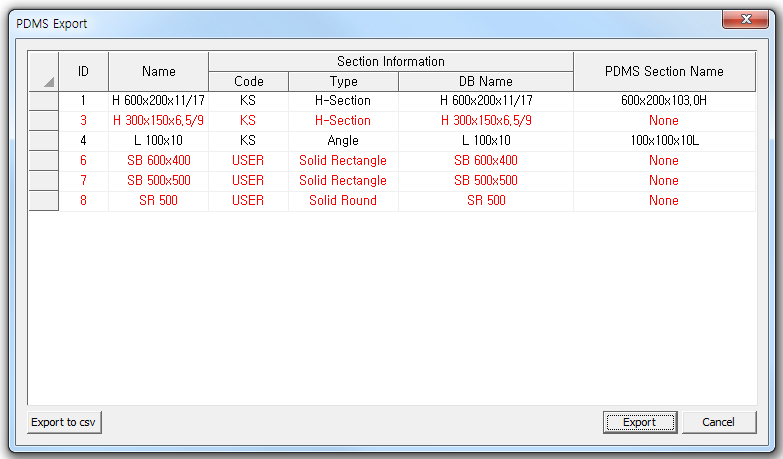

< PDMS Export Section Mapping Dialog >

Table

Name : Section Name defined in midas nGen.

Section Information

Code : Section Code defined in midas nGen file. If not defined, it is expressed as USER.

Type : Section Type defined in midas nGen file.

DB Name : Section DB Name defined in midas nGen file.

PDS Section Name : Define Section Name to be exported to PDMS. It is possible to select cell and modify data.

Other Functions

Export to csv : Export the information in Import Section Mapping dialog to excel file(*.CSV).

Export : After modification, export PDMS neutral file. When 'Export' is finished, complete message is outputted in Message window.

Cancel : Cancel export

1. For those section DB only present in midas nGen, it will be outputted as 'None' in red color for PDMS Section Name. In this case, section will not be exported. Therefore it is necessary to modify section which is also present in PDMS.

2. Method to check the existence of section DB : Program installed folder C: drive > Program file > midas > nGen MODS > midas nGen > Convert > Export > DB > Excel file.
