PDS Compare Model

Compare PDS neutral file with midas nGen file.



¢Æ Call

[Interface] Tab > [3D CAD Program] > [PDS] > [Compare with PDS Model]



¢Æ Detail Description

PDS Compare Model is a function which can import modified(delete, edit, add) file of PDS which was previously exported from midas nGen. It will then compare imported file with the current midas nGen file in order to add, delete or only consider modified members.

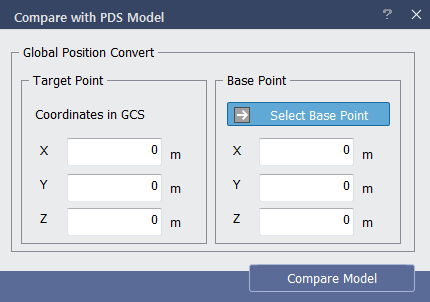

< PDS Compare Dialog >

Define the target point of PDS file and base point of midas nGen for comparison.

Blue_Square.gifTarget Point : Define the target point of PDS file.

Blue_Square.gifBase Point : Define base point of midas nGen by selecting directly from the model view or input the coordinates manually.



Click 'Compare Model' to access the dialog to open PDS Neutral File (*.pnf) to compare with midas nGen.

Compare Member

¨ç Click Compare at right bottom of Compare Mode(PDS) Management dialog.

¨è Mapping information can be checked in Section Mapping tab.

¨é Deleted member from PDS can be checked in Delete Member tab.

 ¢º If deleted member is selected from dialog, corresponding member is highlighted in 3D model view.

¨ê In order to view exact revision history of member deletion, click 'Model Revision Report' located at bottom left.

 ¢º Report is outputted in Excel file.

¨ë After final confirmation, click Apply ¢º Check message window
