Import

midas Gen Import

Import midas Gen file.

▒ Call

[Interface] Tab > [Analysis Program] > [midas Gen] > [Import]

▒ Detail Description

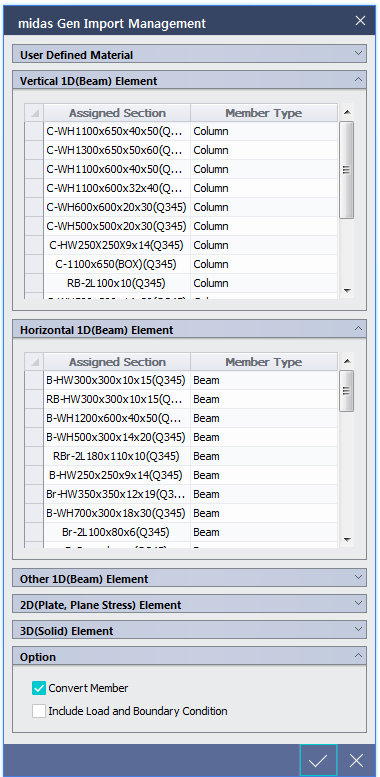

< midas Gen Import Management Dialog >

Click Import to access dialog to import midas Gen Text File (*.mgt)

User Defined Material

Select to define the material type for th user defined material properties from midas Gen. Selectable material types are Steel and RC.

Vertical 1D (Beam) Element

Equal X and Y coordinates for both ends of 1D(Beam) element (but different Z coordinate) from midas Gen will be considered as Vertical 1D (Beam) Element. Member type of Vertical 1D Element can be defined as either Column or Sub Column when it is imported to midas nGen.

Horizontal 1D (Beam) Element

Equal Z coordinate for both ends of 1D(Beam) element from midas Gen will be considered as Horizontal 1D (Beam) Element. Member type of Horizontal 1D Element can be defined as either Beam, Sub Beam or Brace when it is imported to midas nGen.

Other 1D (Beam) Element

Unequal X, Y, and Z coordinate for both ends of 1D(Beam) element from midas Gen will be considered as Other 1D (Beam) Element. Member type of Other 1D (Beam) Element can be defined as either Beam, Sub Beam, Brace(Truss), Brace(Tension only), Brace(Compression only) or Brace(Beam) when it is imported to midas nGen.

2D (Plate, Plane Stress) Element

Plate, Plane Stress, Wall element of midas Gen can be imported as Plate or Shell member when it is imported to midas nGen.

3D (Solid) Element

Solid element in midas Gen will be imported as solid member when it is imported to midas nGen.

Option

Convert Member : Check to merge/divide element from midas Gen in accordance with Auto Edit rule of midas nGen. (Refer to Auto Edit from Member section).

Include Load and Boundary Condition : Check to include assigned load and boundary condition from midas Gen. Sometimes it is necessary to exclude load and boundary condition for faster import process.

midas Gen Import (v : Available, v* : Available partially)
Function			Remark
Structure	Structure Type	Other
	Structure Type	Gravity Acceleration	v
	Building Control Data
	Story Data
	UCS
	Grid Point/Line
	Named Plane
	Group
Node			v*
Node Parameters	Nodal Local Axis
Element	Truss		v
	Truss-Tenion only		v
	Hook		v*
	Cable		v*
	Truss-Compression only		v
	Gap		v*
	General Beam		v
	Tapered Beam
	Plate		v
	Plate Stress		v
	Plane Strain
	Axisymmetric
	Solid		v
	Wall		v
	Wall Opening
Element Parameters	Beta Angle		v
	Element Local Axis	Beam	v
	Element Local Axis	Plate
Properties	Material	Steel	v
		Concrete	v
		SRC
		Aluminum
		User Define	v
	Time Dependent Material
	Plastic
	Section	Angle	v
		Channel	v
		H-Section	v
		T-Section	v
		Box	v
		Pipe	v
		Double Angle	v
		Double Channel	v*
		Solid Rectangle	v
		Solid Round	v
		Cold Formed Channel
		U-RIB
		Inverted T-section
		Value Type	v*
	Scale Factor
	Tapered Group
	Thickness		v
	Inelastic Properties
Boundary	Supports		v*
	Point Spring	Linear	v
		Comp.-only	v
		Tens. -only	v
		Multi-Linear
	Surface Spring		v*
	General Spring
	Pile Spring Supports		v*
	Elastic Link	General	v
		Rigid
		Tension Only	v
		Compression Only	v
		Multi-Linear
	Rigid Link		v
	General Link
	Beam End Release		v
	Beam End Offsets	Global	v
	Beam End Offsets	Element	v
	Plate End Release
	Linear Constraints
	Panel Zone Effects
	Nodal Local Axis
	Define Label Dir.
	Diaphragm Disconnect
	Story Diaphragm Group
Static Load	Static Load Case		v
	Create Load Cases Using Load Combinations
	Self Weight		v
	Nodal Loads		v
	Specified Displacements of Supports		v*
	Nodal Body Force
	Loads to Masses		v
	Nodal Masses		v
	Floor Diaphragm Masses
	Wind Loads
	Wind Pressure	Velocity Pressure
		Wind Pressure Function
		Area Wind Pressure
		Beam Wind Pressure
		Nodal Wind Pressure
		Function Wind Pressure
	Static Seismic Loads		v*
	Element Beam Loads	Concentrated Force	v
		Concentrated Mpments/Torsion	v
		Uniform Loads	v
		Nuniform Mpments/Torsions	v
		Trapezoidal Loads	v
		Trapezoidal Moments/Torsions	v
		UniformPressure
		Trapezoidal Pressure
	Line Beam Loads	Concentrated Force	v
		Concentrated Mpments/Torsion	v
		Uniform Loads	v
		Nuniform Mpments/Torsions	v
		Trapezoidal Loads	v
		Trapezoidal Moments/Torsions	v
		UniformPressure
		Trapezoidal Pressure
	Typical Beam Load	Uniformly Distributed Load	v
		Triangle Load	v
		Trapezoidal Load	v
	Pressure Loads	Plate/Plane Stress(Face)	v
		Plate/Plane Stress(Edge)
		Solid(Face)	v
		Plane Strain(Edge)
		Axisymmetric(Edge)
		Wall(Edge)
	Hydrostatic Pressure Loads		v
	Plane Loads		v
	Initial Forces > Large Displacement	Initial Forces for Geometric Stiffness
	Initial Forces > Small Displacement	Initial Forces Control Data
	Initial Forces > Small Displacement	Initial Element Forces
	Define Floor Load Type		v*
	Assign Floor Loads		v
	Finishing Material Loads
	Loading Area Plane
Temp. / Prestress	Element Temperatures		v
	Temperatures Gradient
	Beam Section Temperatures
	System Temperatures		v
	Nodal Temperatures		v
	Tendon Property
	Tendon Profile
	Tendon Prestress Loads
	Prestress Beam Loads
	Pretension Loads
	External TypeLoadcase
Movinge Load	Movinge Load
Dynmic Loads	RS(Response Spectrum) Functions		v
	RS(Response Spectrum) Load Cases		v*
	Time History Load Cases
	Time History Functions
	Ground Acceleration
	Dynmic Nodal Loads
	Time Varying Static Loads
	Multiple Support Excitation
	Define Result Functions
	Define Animation Time
Construction State	Construction Stage Wizard
	Construction Stage (Define C.S)
	Composite section for Construction Stage
	C.S Loads
	Time Loads for Construction Stage
	Creep Coefficient for Construction Stage
Hear of Hydration	Convection Boundary
	Prescribed Temperatures
	Pipe Cooling
	Construction Stage for Hydration
	Stage Display
Settlement/Misc.	Settlement Group
	Settlement Load cases
	Load Cases for Pre-composite Section
	Loading Sequence Nonlinear Analysis
