Chamfer

Create a chamfer on the edge of selected solid body(3D).

▒ Call

[Body] Tab > [Modify] > [Chamfer]

▒ Detail Description

< Mini Toolbar >	Select Object(s)
	: Select the edge of solid body(3D) to chamfer.
	Distance

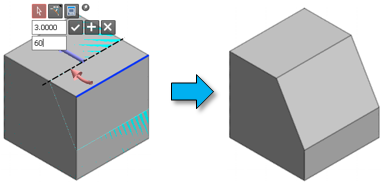

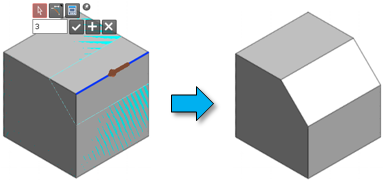

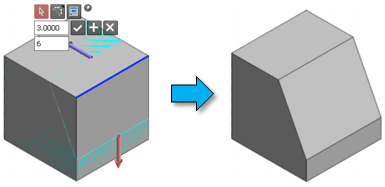

	Define the distance of chamfer. : Distance : Enter equal chamfer distance in both direction. : Distance and Angle : Enter chamfer distance of one edge then define the angle between the chamfered edge to the other edge. : Two Distance : Enter chamfer distance of both direction separately.
