Intersect

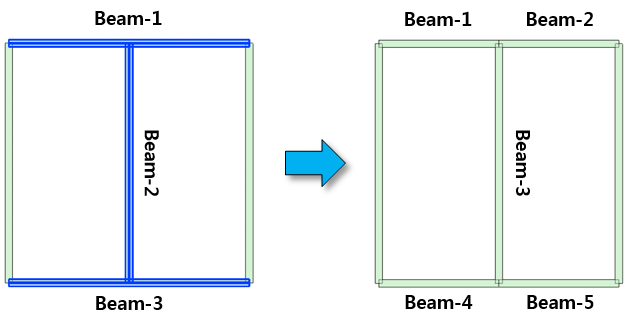

Separate selected line objects(1D) into independent lines at the intersection points



ΆΖ Call

Blue_Square.gif[Member] Tab > [Edit] > [Intersect]

Blue_Square.gif[Body] Tab> [Edit] > [Intersect]



ΆΖ Detail Description

Select two or more line objects to be separated through an intersection operation.

Blue_Square.gifSelectable Objects : Line member(1D), line body(1D)
