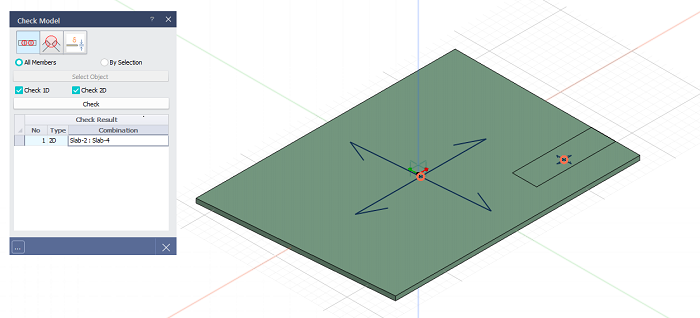

Duplicate Member Check

Search the location members are duplicated.

All Members : Check all members.

By Selection : Check selected members.

Check 1D : Check 1D members. (Beam, Sub Beam, Column, Sub Column and Brace)

Check 2D : Check 2D members (Wall, Slab, Plate and Shell)

Check Result

- Type : Display the member type of duplicated member.

- Combination : Display member type and ID of duplicated member.

- Display corresponding member by double clicking the list.

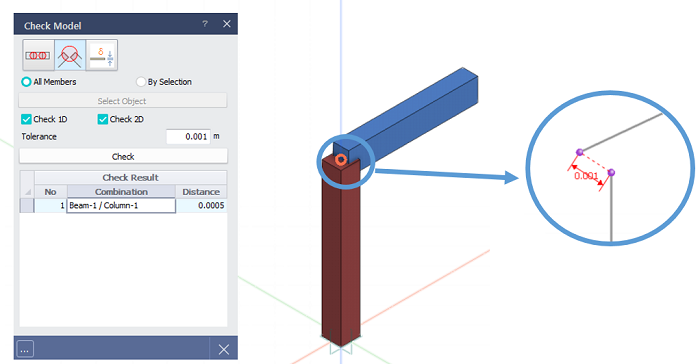

Check Mergeable Points

Tolerance : Enter the tolerance value to find the distance between two mergeable points. If it is defined as 0.001mm, two points within 0.001mm distance are found.

Check Result

- Combination : Display member type and ID of mergeable members.

- Distance : Display the distance between two points.

Check Silver Face

Threshold Value : Enter the threshold value of shape ratio of 2D member.

-     For any shape, equation (Perimeter^2/(4πArea) is used. For circular shape, the ratio becomes 1 and it increases as the Aspect Ratio increases
Example :

1:1 square ~ 1.27
100:1 rectangle ~ 32.47

1000:1 rectangle ~ 318.95,

Check Result

- Sliver Face : Display the member ID.

- Ratio : Show the Threshold Value.
