Slab Load Transfer

Transfer slab Load as point load to the edge of wall or beam which supports slab. Slab where the loads are converted as Point Loads, will not be included in analysis of main member and separate slab model and analysis results will be created. Membrane type slab is not applicable to this function.



¢Æ Call

Blue_Square.gifNew

 [Load] Tab > [Specific] > [Slab Load Transfer]

Blue_Square.gifDelete

 Work Tree  [Analysis] Tab > [Loading Tool] > [Loading Point] > [List] > Right-Click > Delete



¢Æ Detail Description

Blue_Square.gifSelect Slab : Select story which requires conversion of Point Load or slab analysis of separate gravity load.
Blue_Square.gifSelect Support : Select edge of wall or beams which support slab which requires conversion of Pint Load or slab analysis.
Blue_Square.gifTransferred Data : Select processing method of existing Loading Data and naming rule of Load Point Group when slab load is converted to Point Load.

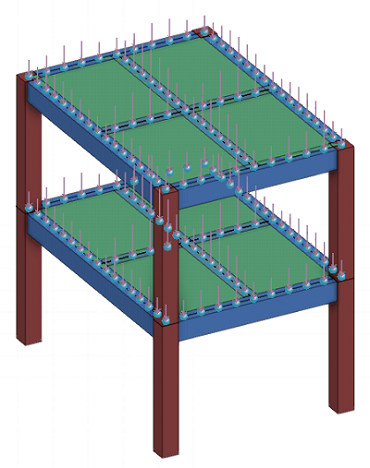

[Transfer Slab Load]

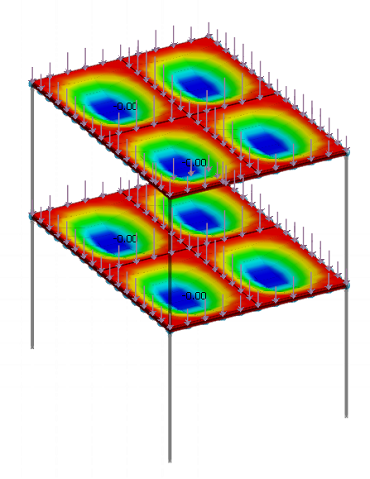

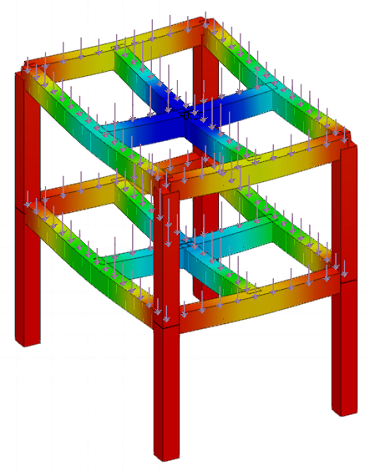

(a)   Main Structure model                                                       (b) Slab Analysis Model

[Analysis Result]



 During the analysis, slab creates its own analysis model where gravity loads are acting on the corresponding supporting members to output results.
