New

[Define] Tab > [Material] > [Material]

Work Tree [Model] Tab > [Property] > [Material] > Right-Click > [Add]

Modify

Work Tree [Model] Tab > [Property] > [Material] > [List] > Right-Click > [Modify]

Delete

Work Tree [Model] Tab > [Property] > [Material] > [List] > Right-Click > [Delete]

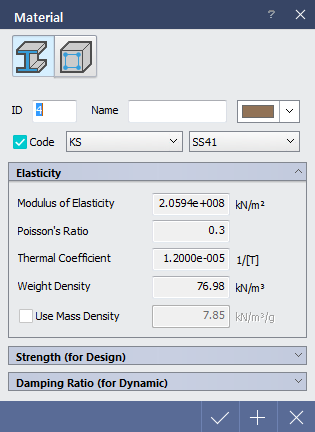

< Material Dialog >

:  Define material properties of steel.

: Define material properties of concrete.

ID : Material property ID number

Name :  Enter the name of material property to be created.

: Choose color of material property.

If "By Material" option is selected from Color Mode at Toolbar, the color defined in this option will be outputted..

Code : Select material type recognized in each of the standards codes.

Check On : Material type recognized in each of the standards codes will be used.

Check Off : Material property will be defined by user.

Elasticity

Modulus of Elasticity

Poission's Ratio

Thermal Coefficient

Weight Density

Use Mass Density

If "Use Mass Density" option is checked on when DB option is already checked on, gravitational acceleration(g) indicated in DB is used for Mass Density calculation.

Strength(for Design)

Tensile Strength(Fu)

Yield Strength(Fy1)

Yield Strength(Fy2)

Damping Ratio(for Dynamic)

Damping Ratio
