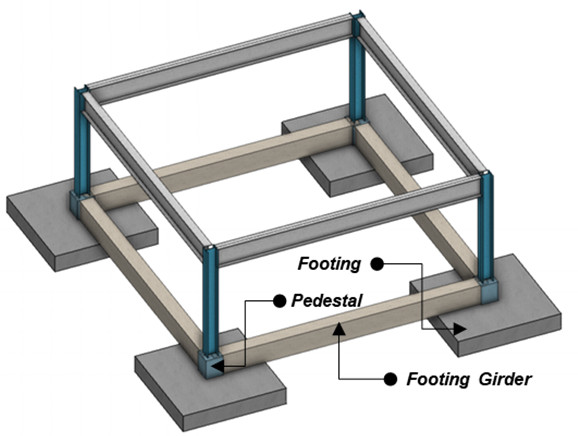

Footing Girder

Create Footing Girder (1D). Design procedure for footing girder is the same as beam, and it is automatically assigned to the basement member set.

It is classified as a footing girder member in drawings and reports, and the default cover is 80mm.

▒ Call

New
[Member] > [Basement] > [Footing Girder]

Delete
Work Tree [Model] Tab > [Member] > [Member Set] > [Footing Girder] > [List] > Right-click > [Delete]

▒ Detail Description

3D Modeling Mode

   Member Set : Select Member Set. Default set of footing girder is “Basement”.
   Story Set : Select Story Set.

Section : Select Section Property.

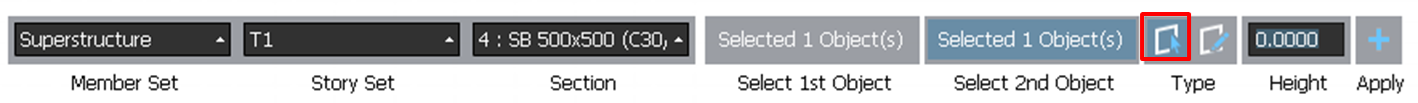

[By Section] Type

: Footing girders are created automatically at the bottom between two selected columns.

Select 1st Object : Select the first column to be connected to the footing girder.

Select 2nd Object : Select the second column to be connected to the footing girder.

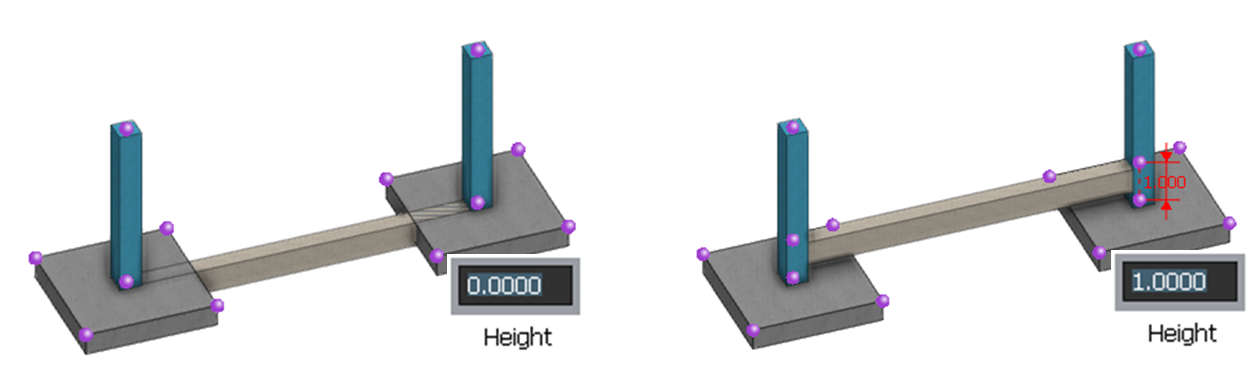

Height : Enter the height from bottom of the column.

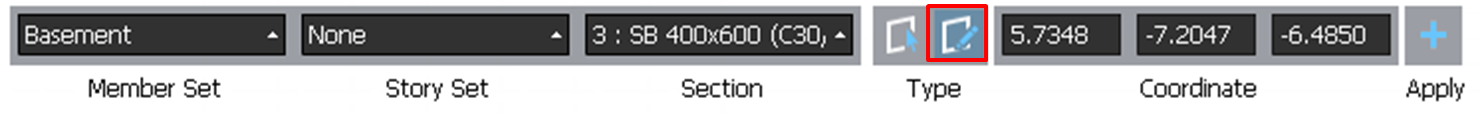

[By Drawing] Type

: Footing girder are created automatically by selecting two points.
