[Results] Tab > [Analysis Results] Category > [Deform]

< Deform >

Deform : Check to display deformed shape of structure. Uncheck to display undeformed shape of structure.

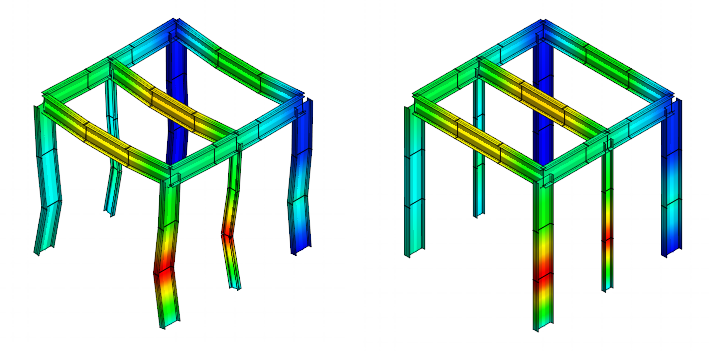

                          <Deform Check On>                                               <Deform Check Off>

Shape : Select display method of deformed shape. This is only activated if Deform function is checked.

 Deformed : Display deformed shape only.

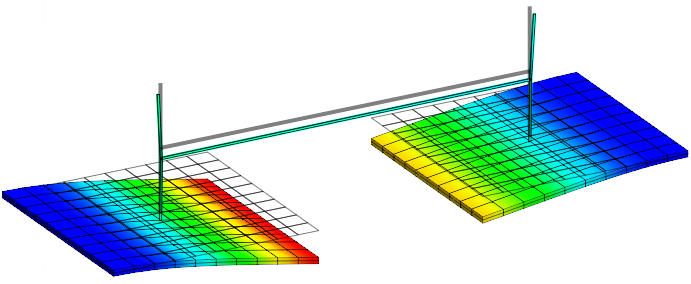

 Deformed+Undeformed (Wire) : Display both deformed shape and undeformed original shape(as a wire).

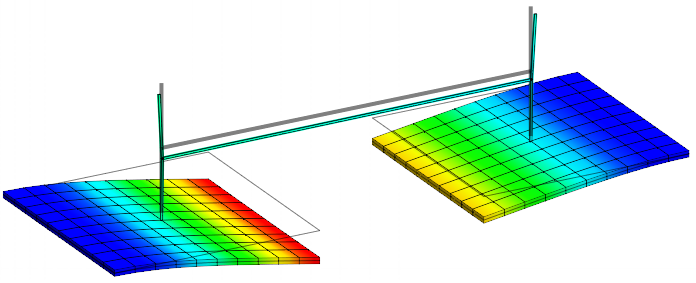

Deformed+Undeformed(Feature) : Display both deformed shape and undeformed original shape(as a feature boundary line).

Deformed+Undeformed(Shading) : Display both deformed shape and undeformed original shape(using the geometry shape colors).

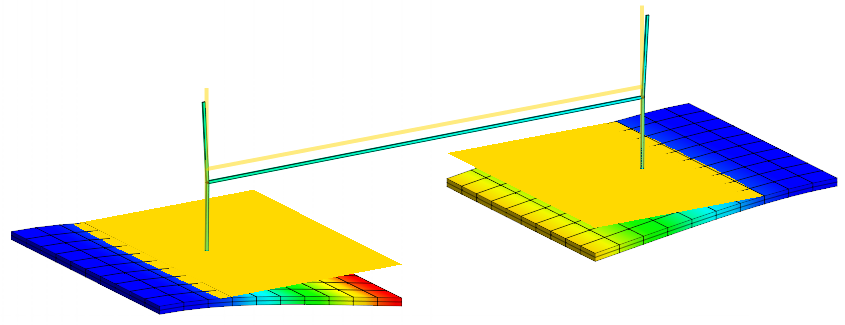

Deformed+Undeformed(Transparent) : Display both deformed shape and undeformed original shape(using the geometry shape colors under the transparency condition).

Color of Shading/Edge of undeformed shape is defined at "Display Option > Color > Result/Misc.".

Scale : Enter the scale value used when displaying the deformed shape on the screen.
