[Results] > [Analysis Tap] > [Query] > [LDF Sum]

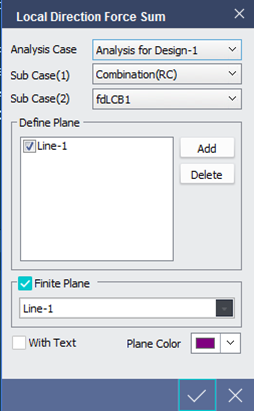

< LDF Sum Dialog >

Analysis Case : Select Analysis case

   - Sub Case (1) : Select Load case or Load Combination.

   - Sub Case (2) : Select Load Combination When selecting Load Combination in sub case(1)

Define Plane : Add / Delete Lines or Surfaces for force sum

      - Position 1 : set 1st point of surface / Start Point

      - Position 2 : set 2ndPoint of surface / End Point

      - Position 3 : set 3rdPoint of surface / Direction for force sum

Finite Plane :  Display the defined lines / surface and  axis direction for the selected lists

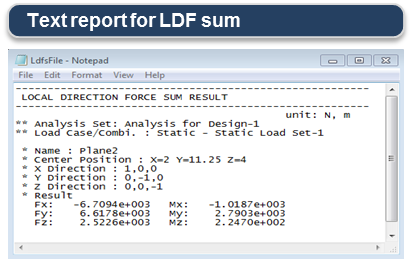

With Text : output a text results

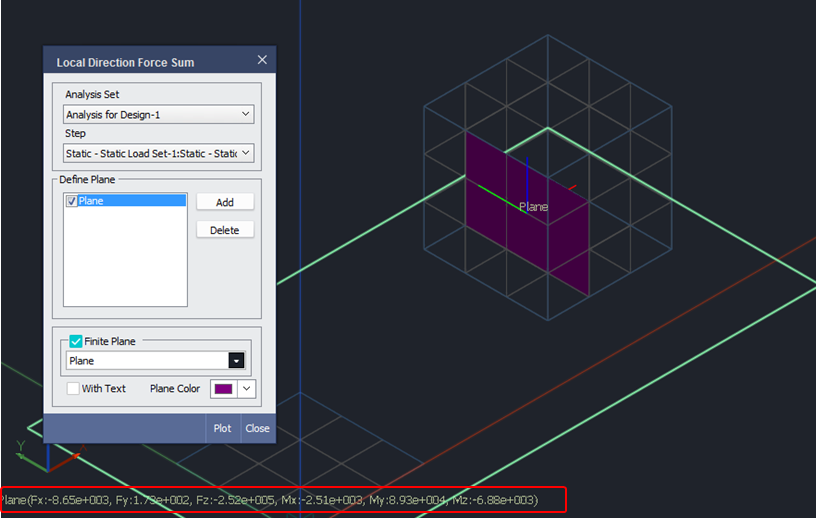

The results for LDF Sum are displayed at the bottom of the screen
