[Results] Tab > [Design Results] Category > [Design Modification] > [RC Section]

Procedure

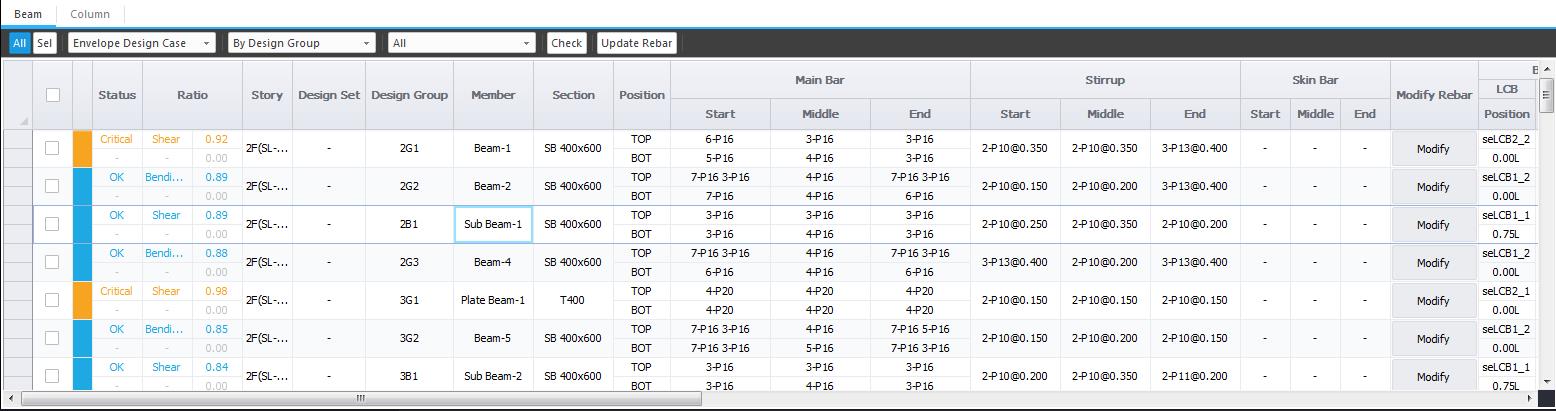

1. After analysis and design, click RC Section to access the following table.

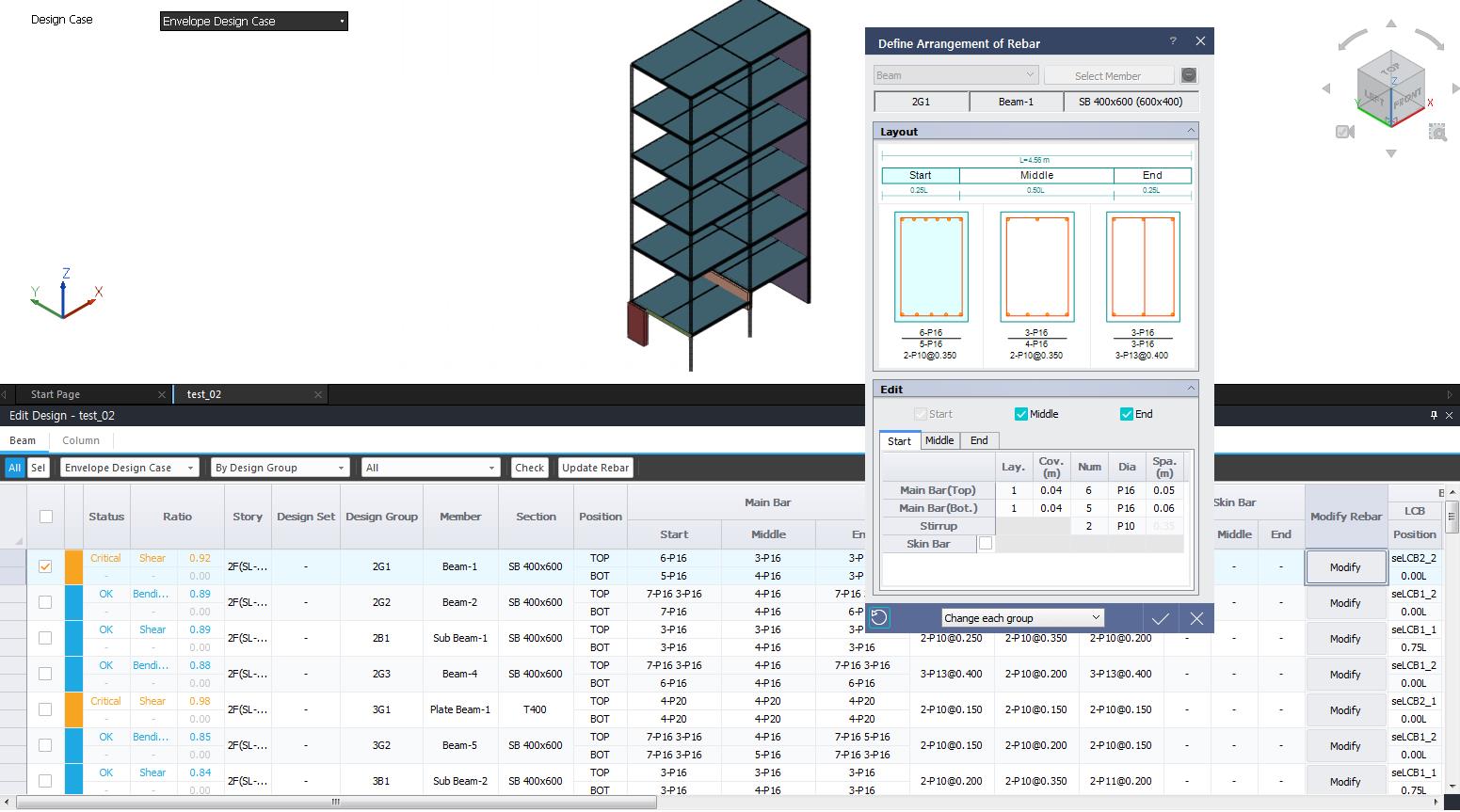

2. Click Modify button after selecting the desired members to invoke “Define Arrangement of Rebar” dialog box. Once the rebar data is modified, it will be updated in the table.

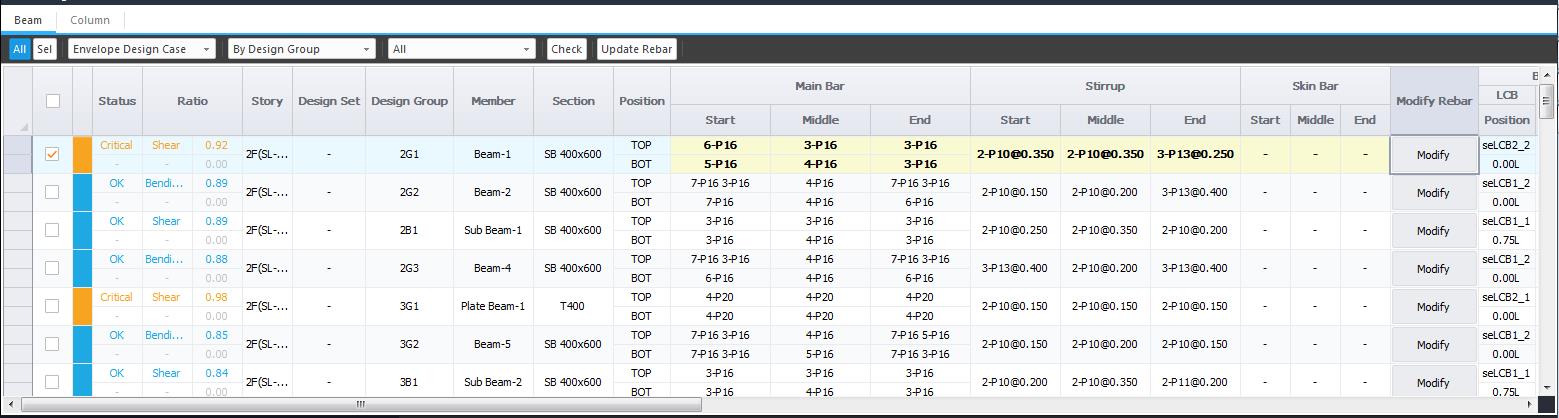

3. Click “Check” button to perform design check for the members rebar data has been updated. Predicted design results of updated rebars can be checked at Status column.  Select members and click Update Rebar button to change rebar data of selected members.
