Command Line

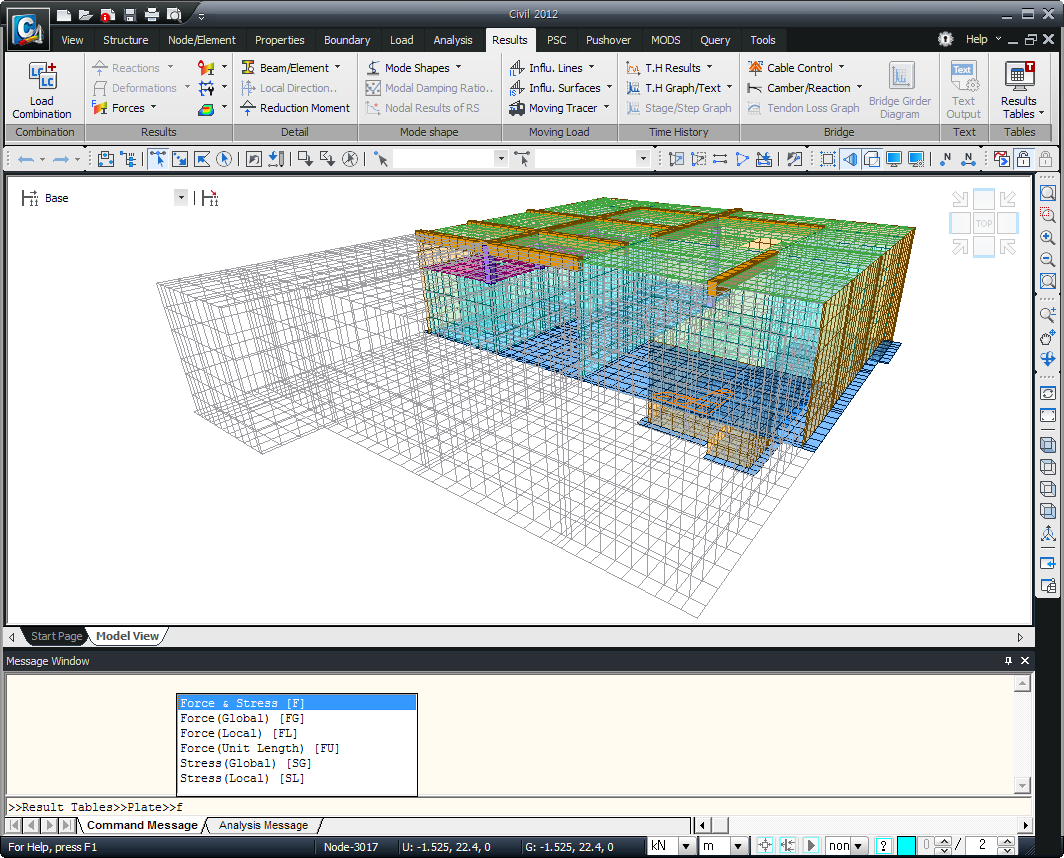

모든 Command Key에 대한 정보는 C: > Program Files > MIDAS > MIDAS Civil > User폴더 내의 shortcutkey.cmd 파일에 저장되어 있으며 이 파일의 편집을 통해서 사용자가 원하는 대로 Key를 설정할 수 있습니다.

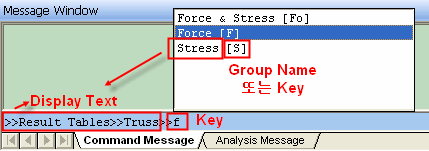

shortcutkey.cmd파일의 한 Line에 하나의 Command Key 또는 Group Key의 정보가 들어있으며, 형식은 다음과 같습니다.

Group Path: 해당 Command Key가 Group내에 속해있는 Key인경우 Group의 경로를 입력합니다. Group경로 입력시에는 Group Name을 사용해야 합니다.

L: 하위 그룹의 선택. 그룹내에 포함되어있는 다른 그룹을 바로 선택하기 위한 key입니다.

Menu Path: Key Type이 'C'인 경우. 실행할 메뉴의 경로를 입력합니다. 경로는 Main Menu기준으로 입력하며, 메뉴 이름에 포함된 '...'은 무시하며, 대소문자는 구별하지 않아도 무방합니다.

Group Path: Key Type이 'L'인 경우. 선택할 하위 그룹이 속해있는 상위 그룹의 경로를 입력합니다. Group경로 입력시에는 Group Name을 사용해야 합니다.

3. Fo, RT > RTT > Force & Stress, C, Results > Result Tables > Truss > Force & Stress

1. 'RT'라는 Command Group을 설정합니다. Command Line에 'RT'입력시 'Result Table'이라고 표시되며 이 그룹에 속한 하위 그룹/Command List가 나옵니다.

2. RT그룹의 하위 그룹인 RTT(그룹 이름)라는 그룹을 정의하고 이 그룹의 Group Key는 'T'로 지정합니다. 이 그룹의 경로 'RT > Truss'에서 'RT'는 RT그룹의 Key가 아닌 그룹 이름입니다.

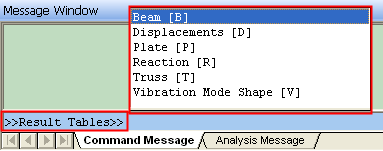

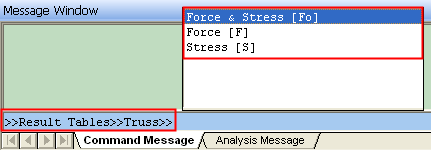

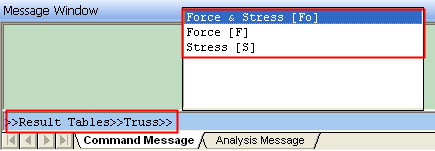

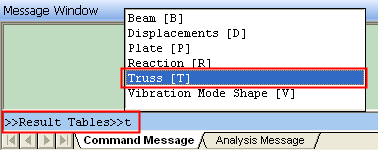

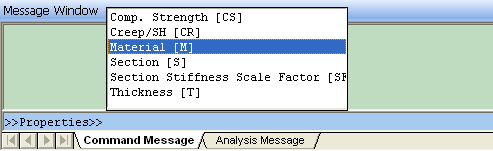

RT를 입력하여 Result Table(RT)을 선택하고 다시 T를 입력하여 하위 그룹 Truss(T)를 선택하면, Truss(T) 그룹에 속해있는 Command Key리스트가 표시됩니다.

3. Result Table(TR) 그룹 내의 Truss(T) 그룹을 바로 선택할 수 있는 L Type의 Key를 RTT로 정의합니다. RTT를 입력하면 RT > Truss 경로를 가지는 그룹이 바로 선택됩니다.

4. Result Table(RT)그룹의 하위 그룹인 Truss(T)그룹 내에 Force & Stress 메뉴에 대한 Command Key 'Fo'를 지정합니다. Results > Result Tables > Truss > Force & Stress메뉴의 실행을 위한 Command Key 'Fo'를 Result Table(RT) > Truss(T) 그룹에 정의합니다.

이 Key의 실행을 위해서는 먼저 Result Table(RT) > Truss(T)그룹으로 이동해야 합니다.

5. Results > Result Tables > Truss > Force & Stress 실행을 위해 Command Key인 'RTTFo'를 정의 합니다. 이 Key는 어느 그룹에도 속해있지 않은 Command Key로써 Command Line의 가장 상위에서 실행 가능합니다.

1. Group Key가 중복되는 경우 가장 먼저(shortcutkey.cmd 파일에서 위쪽) 정의된 Group이 실행됩니다.

2. Command Key가 중복되는 경우에는 가장 나중에(shortcutkey.cmd 파일에서 아래쪽)에 정의된 Command가 실행됩니다.

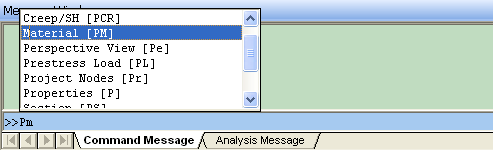

4. 초기상태에서 Space Bar를 누르면 가장 상위의 Group에 대한 key와 그룹에 속해있지 않은 Command Key가 모두 리스트에 표시됩니다.

Str, Structure Type, C, Model>Structure Type

C, Create, G, C

N, C > Create Nodes, C, Model > Nodes > Create Nodes

CN, Create Nodes, C, Model > Nodes > Create Nodes

E, C > Create Elements, C, Model > Elements > Create Elements

CE, Create Elements, C, Model > Elements > Create Elements

D, Delete, G, D

N, D > Delete Nodes, C, Model >Nodes >Delete

DN, Delete Nodes, C, Model >Nodes >Delete

E, D > Delete Elements, C, Model > Elements > Delete

DE, Delete Elements, C, Model > Elements > Delete

T, Translate, G, T

N, T > Translate Nodes, C, Model > Nodes > Translate

TN, Translate Nodes, C, Model > Nodes > Translate

E, T > Translate Elements, C, Model > Elements > Translate

TE, Translate Elements, C, Model > Elements > Translate

Ro, Rotate, G, Ro

N, Ro > Rotate Nodes, C, Model > Nodes > Rotate

RoN, Rotate Nodes, C, Model > Nodes > Rotate

E, Ro > Rotate Elements, C, Model > Elements > Rotate

RoE, Rotate Elements, C, Model > Elements > Rotate

Mi, Mirror, G, Mi

N, Mi > Mirror Nodes, C, Model > Nodes > Mirror

MiN, Mirror Nodes, C, Model > Nodes > Mirror

E, Mi > Mirror Elements, C, Model > Elements > Mirror

MiE, Mirror Elements, C, Model > Elements > Mirror

Di, Divide, G, Di

N, Di > Divide Nodes, C, Model > Nodes > Divide

DiN, Divide Nodes, C, Model > Nodes > Divide

E, Di > Divide Elements, C, Model > Elements > Divide

DiE, Divide Elements, C, Model > Elements > Divide

Me, Merge, G, Me

N, Me > Merge Node, C, Model > Nodes > Merge

MeN, Merge Node, C, Model > Nodes > Merge

E, Me > Merge Elements, C, Model > Elements > Merge

MeE, Merge Elements, C, Model > Elements > Merge

Ren, Renumbering, G, Ren

N, Ren > Renumbering, C, Model > Nodes > Renumbering

RenN, Renumbering, C, Model > Nodes > Renumbering

E, Ren > Renumbering, C, Model > Elements > Renumbering

RenE, Renumbering, C, Model > Elements > Renumbering

Pr, Project Nodes, C, Model > Nodes > Project

I, Intersect Elements, C, Model > Elements > Intersect

E, Extrude Elements, C, Model > Elements > Extrude

Ch, Change Element Parameters, C, Model > Elements > Change Element Parameters

P, Properties, G, P

M, P > Material, C, Model > Properties > Material

PM, Material, C, Model > Properties > Material

S, P > Section, C, Model > Properties > Section

PS, Section, C, Model > Properties > Section

CR, P > Creep/SH, C, Model > Properties > Time Dependent MAterial(Creep/Shrinkage)

PCR, Creep/SH, C, Model > Properties > Time Dependent MAterial(Creep/Shrinkage)

SF, P > Section Stiffness Scale Factor, C, Model > Properties > Section Stiffness Scale Factor

PSF, Section Stiffness Scale Factor, C, Model > Properties > Section Stiffness Scale Factor

T, P > Thickness, C, Model > Properties > Thickness

PT, Thickness, C, Model > Properties > Thickness

CS, P > Comp.Strength, C, Model > Properties > Time Dependent MAterial(Comp. Strength)

PCS, Comp.Strength, C, Model > Properties > Time Dependent MAterial(Comp. Strength)

B, Boundaries, G, B

S, B > Supports, C, Model > Boundaries > Supports

BS, Supports, C, Model > Boundaries > Supports

R, B > Beam End Release, C, Model > Boundaries > Beam End Release

BR, Beam End Release, C, Model > Boundaries > Beam End Release

O, B > Beam End Offsets, C, Model > Boundaries > Beam End Offsets

BO, Beam End Offsets, C, Model > Boundaries > Beam End Offsets

RL, B > Rigid Link, C, Model > Boundaries > Rigid Link

BRL, Rigid Link, C, Model > Boundaries > Rigid Link

EL, B > Elastic Link, C, Model > Boundaries > Elastic Link

BEL, Elastic Link, C, Model > Boundaries > Elastic Link

EW, B > Effective Width, C, Model > Boundaries > Effective Width Scale Factor

BEW, Effective Width, C, Model > Boundaries > Effective Width Scale Factor

GL, B > General Link, C, Model > Boundaries > General Link

BGL, General Link, C, Model > Boundaries > General Link

GLP, B > General Link Properties, C, Model > Boundaries > General Link properties

BGLP, General Link Properties, C, Model > Boundaries > General Link Properties

M, Masses, G, M

N, M > Nodal Masses, C, Model > Masses > Nodal Masses

MN, Nodal Masses, C, Model > Masses > Nodal Masses

L, M > Loads to Masses, C, Model > Masses > Loads to Masses

ML, Loads to Masses, C, Model > Masses > Loads to Masses

Gr, Group, G, Gr

S, Gr > Define Structure Group, C, Model > Group > Define Structure Group

GrS, Define Structure Group, C, Model > Group > Define Structure Group

B, Gr > Define Boundary Group, C, Model > Group > Define Boundary Group

GrB, Define Boundary Group, C, Model > Group > Define Boundary Group

L, Gr > Define Load Group, C, Model > Group > Define Load Group

GrL, Define Load Group, C, Model > Group > Define Load Group

T, Gr > Tendon Load Group, C, Model > Group > Define Tendon Group

GrT, Define Tendon Groupb, C, Model > Group > Define Tendon Group

Rd, Redraw, C, View > Redraw

In, Initial View, C, View > Initial View

Dy, Dynamic View, G, Dy

Z, Dy > Zoom, C, View > Dynamic View > Zoom

DyZ, Zoom, C, View > Dynamic View > Zoom

P, Dy > Pan, C, View > Dynamic View > Pan

DyP, Pan, C, View > Dynamic View > Pan

R, Dy > Rotate, C, View > Dynamic View > Rotate

DyR, Rotate, C, View > Dynamic View > Rotate

Z, Zoom, G, Z

F, Z > Fit, C, View > Zoom > Fit

ZF, Fit, C, View > Zoom > Fit

W, Z > Window, C, View > Zoom > Window

ZW, Window, C, View > Zoom > Window

I, Z > In, C, View > Zoom > In

ZI, In, C, View > Zoom > In

O, Z > Out, C, View > Zoom > Out

ZO, Out, C, View > Zoom > Out

A, Z > Auto Fitting, C, View > Zoom > Auto Fitting

ZA, Auto Fitting, C, View > Zoom > Auto Fitting

Vi, View Point, G, Vi

I, Vi > Iso, C, View > View Point > Iso

ViI, Iso, C, View > View Point > Iso

T, Vi > Top(+Z), C, View > View Point > Top (+Z)

ViT, Top(+Z), C, View > View Point > Top (+Z)

L, Vi > Left(-X), C, View > View Point > Left (-X)

ViL, Left(-X), C, View > View Point > Left (-X)

R, Vi > Right(+X), C, View > View Point > Right (+X)

ViR, Right(+X), C, View > View Point > Right (+X)

F, Vi > Front(-Y), C, View > View Point > Front (-Y)

ViF, Front(-Y), C, View > View Point > Front (-Y)

A, Vi > Angle, C, View > View Point > Angle

ViA, Angle, C, View > View Point > Angle

Sh, Shrink Elements, C, View > Shrink Elements

Pe, Perspective View, C, View > Perspective View

H, Remove Hidden Lines, C, View > Remove Hidden Lines

S, Select, G, S

Id, S > Identity, C, View > Select > Identity

SId, Identity, C, View > Select > Identity

S, S > Single, C, View > Select > Single

SS, Single, C, View > Select > Single

W, S > Window, C, View > Select > Window

SW, Window, C, View > Select > Window

Po, S > Polygon, C, View > Select > Polygon

SPo, Polygon, C, View > Select > Polygon

In, S > Intersect Line, C, View > Select > Intersect Line

SIn, Intersect Line, C, View > Select > Intersect Line

P, S > Plane, C, View > Select > Plane

SP, Plane, C, View > Select > Plane

V, S > Volume, C, View > Select > Volume

SV, Volume, C, View > Select > Volume

All, S > Select All, C, View > Select > Select All

SAll, Select All, C, View > Select > Select All

Pr, S > Select Previous, C, View > Select Previous

SPr, Select Previous, C, View > Select Previous

U, Unselect, G, U

Id, U > Identity, C, View > Unselect > Identity

Uid, Identity, C, View > Unselect > Identity

W, U > Window, C, View > Unselect > Window

UW, Window, C, View > Unselect > Window

Po, U > Polygon, C, View > Unselect > Polygon

Upo, Polygon, C, View > Unselect > Polygon

I, U > Intersect Line, C, View > Unselect > Intersect Line

UI, Intersect Line, C, View > Unselect > Intersect Line

P, U > Plane, C, View > Unselect > Plane

UP, Plane, C, View > Unselect > Plane

V, U > Volume, C, View > Unselect > Volume

UV, Volume, C, View > Unselect > Volume

All, U > Unselect All, C, View > Unselect > Unselect All

UAll, Unselect All, C, View > Unselect > Unselect All

A, Activities, G, A

A, A > Active, C, View > Activities > Active

AA, Active, C, View > Activities > Active

I, A > Inactive, C, View > Activities > Inactive

AI, Inactive, C, View > Activities > Inactive

In, A > Inverse Active, C, View > Activities > Inverse Active

AIn, Inverse Active, C, View > Activities > Inverse Active

All, A > Active All, C, View > Activities > Active All

AAll, Active All, C, View > Activities > Active All

Id, A > Active Identity, C, View > Activities > Active Identity

AId, Active Identity, C, View > Activities > Active Identity

P, A > Active Previous, C, View > Activities > Active Previous

AP, Active Previous, C, View > Activities > Active Previous

G, Grid, G, G

V, G > View, G, GV

GV, View, L, G > View

P, G > GV > Point Grid, C, View > Grids > Point Grid

GP, Point Grid, C, View > Grids > Point Grid

L, G > GV > Line Grid, C, View > Grids > Line Grid

GL, Line Grid, C, View > Grids > Line Grid

D, G > Define, G, GD

GD, Define Grid, L, G > Define

P, G > GD > Define Point Grid, C, Model > Grids > Define Point Grid

GCP, Define Point Grid, C, Model > Grids > Define Point Grid

L, G > GD > Define Line Grid, C, Model > Grids > Define Line Grid

GCL, Define Line Grid, C, Model > Grids > Define Line Grid

Sn, Snap, G, Sn

P, Sn > Point, C, View > Snap > Point

SnP, Point, C, View > Snap > Point

L, Sn > Line, C, View > Snap > Line

SnL, Line, C, View > Snap > Line

N, Sn > Node, C, View > Snap > Node

SnN, Node, C, View > Snap > Node

E, Sn > Element, C, View > Snap > Element

SnE, Element, C, View > Snap > Element

All, Sn > All, C, View > Snap > All

SnAll, All, C, View > Snap > All

Free, Sn > Free, C, View > Snap > Free

SnFree, Free, C, View > Snap > Free

Dis, Display, G, Dis

D, Dis > Display, C, View > Display

Dp, Display, C, View > Display

O, Dis > Display Option, C, View > Display Option

DO, Display Option, C, View > Display Option

SL, Static Load, G, SL

NL, SL > Nodal Loads,C,Load>Nodal Loads

SLNL, Nodal Loads,C,Load>Nodal Loads

EB, SL > Element Beam Loads,C,Load>Element Beam Loads

SLEB, Element Beam Loads,C,Load>element beam loads

LB, SL > Line Beam Loads, C, Load>Line Beam Loads

SLLB, Line Beam Loads,C,Load>Line beam loads

PL, SL > Pressure Loads,C,Load>Pressure loads

SLPL, Pressure Loads,C,Load>pressure Loads

TL,Temperaure Loads, G, TL

ST, TL>System Temperature,C,Load>Temperature Loads>system temperature

TLST, System Temperature,C,Load>temperature loads>system temperature

NT, TL>Nodal Temperature,C,Load>temperature loads>nodal temperatures

TLNT, Nodal Temperature,C,Load>temperature loads>nodal temperatures

ET, TL>Element Temperature,C,Load>temperature loads>element temperatures

TLET, Element Temperature,C,Load>temperature loads>element temperatures

TG, TL>Temperature Gradient,C,Load>temperature loads>temperature gradient

TLTG, Temperature Gradient,C,Load>temperature loads>temperature gradient

BT, TL>Beam Section Temperatures,C,Load>temperature loads>beam section temperatures

TLBT, Beam Section Temperatures,C,Load>temperature loads>beam section temperatures

PL, Prestress Load, G, PL

BL, PL > Prestress Beam Load, C, Load > Prestress Loads > Prestress Beam Loads

PT, PL > Pretension, C, Load > prestress Loads > pretension loads

EPT, PL > External Pretension, C, Load > prestress Loads > External Type Loadcase for pretension

TPT, PL > Tendon property, C, Load > prestress Loads > Tendon Property

TPR, PL > Tendon Profile, C, Load > prestress Loads > Tendon Profile

TPL, PL > Tendon Prestress Loads, C, Load > prestress Loads > Tendon Prestress loads

MVL, Moving Load, G, MV

Co, MV > Code, C, Load > Moving Load Analysis Data > Moving Load Code

MVC, MVL Code, C, Load > Moving Load Analysis Data > Moving Load Code

TLL, MV > Line Lanes, C, Load > Moving Load Analysis Data > Traffic Line Lanes

MVTLL, Traffic Line Lanes, C, Load > Moving Load Analysis Data > Traffic Line Lanes

TSL, MV > Surface Lanes, C, Load > Moving Load Analysis Data > Traffic Surface Lanes

MVTSL, Traffic Surface Lanes, C, Load > Moving Load Analysis Data > Traffic Surface Lanes

Ve, MV > Vehicles, C, Load > Moving Load Analysis Data > Vehicles

MVVe, Vehicles, C, Load > Moving Load Analysis Data > Vehicles

VeC, MV > Vehicle Classes, C, Load > Moving Load Analysis Data > Vehicle Classes

MVVeC, Vehicle Classes, C, Load > Moving Load Analysis Data > Vehicle Classes

CA, MV > MVL Case, C, Load > Moving Load Analysis Data > Moving Load Cases

MVCA, MVL Case, C, Load > Moving Load Analysis Data > Moving Load Cases

CR, MV > Concurrent Reaction, C, Load > Moving Load Analysis Data > Concurrent Reaction Group

MVCR, Concurrent Reaction, C, Load > Moving Load Analysis Data > Concurrent Reaction Group

LS, MV > Lane Support, C, Load > Moving Load Analysis Data > Lane Support-Negative Moment at interior piers

MVLS, Lane Support, C, Load > Moving Load Analysis Data > Lane Support-Negative Moment at interior piers

HH, Meat of Hydration, G, HH

AT, HH > Ambient Temp, C, Load > Heat of Hydration Analysis Data > Ambient Temperature Functions

CC, HH > Convection Coeff, C, Load > Heat of Hydration Analysis Data > Convection Coefficient Functions

EC, HH > Element Convection, C, Load > Heat of Hydration Analysis Data > Element Convection Boundary

PT, HH > Prescribed Temp, C, Load > Heat of Hydration Analysis Data > Prescribed Temperature

HS, HH > Heat Source, C, Load > Heat of Hydration Analysis Data > Heat Source Functions

AHS, HH > Assign HEat source, C, Load > Heat of Hydration Analysis Data > Assign Heat source

PC, HH > Pipe Cooling, C, Load > Heat of Hydration Analysis Data > Pipe Cooling

CSH, HH > CS for Hydration, C, Load > Heat of Hydration Analysis Data > Define Construction Stage for Hydration

Ana, Analysis, G, Ana

M, Ana > Main Control, C, Analysis > Main Control Data

AM, Main Control, C, Analysis > Main Control Data

PD, Ana > P-Delta, C, Analysis > P-Delta Analysis control

APD, P-Delta, C, Analysis > P-Delta Analysis control

Bu, Ana > Buckling, C, Analysis > Buckling Analysis Control

ABu, Buckling, C, Analysis > Buckling Analysis Control

EG, Ana > Eigenvalue, C, Analysis > Eigenvalue Analysis Control

AEG, Eigenvalue, C, Analysis > Eigenvalue Analysis Control

RS, Ana > Response Spectrum, C, Analysis > Response Spectrum ANalysis Control

ARS, Response Spectrum, C, Analysis > Response Spectrum ANalysis Control

HH, Ana > Heat of Hydration, C, Analysis > Heat of Hydration Analysis Control

AHH, Heat of Hydration, C, Analysis > Heat of Hydration Analysis Control

MV, Ana > Moving Load, C, Analysis > Moving Load Analysis Control

AMV, Moving Load, C, Analysis > Moving Load Analysis Control

NL, Ana > Nonlinear, C, Analysis > Nonlinear Analysis Control

ANL, Nonlinear, C, Analysis > Nonlinear Analysis Control

CS, Ana > Construction Stage, C, Analysis > Construction Stage Analysis Control

ACS, Construction Stage, C, Analysis > Construction Stage Analysis Control

SU, Ana > Suspension Bridge, C, Analysis > Suspension Bridge Analysis Control

ASU, Suspension Bridge, C, Analysis > Suspension Bridge Analysis Control

BC, Ana > Boundary Change, C, Analysis > Boundary Change Assignment to Load Cases/Analyses

ABC, Boundary Change, C, Analysis > Boundary Change Assignment to Load Cases/Analyses

Co, Combinations, C, Results > Combinations

Rea, Reactions, G, Rea

F, Rea > Reaction Forces/Moments, C, Results > Reactions > Reaction Forces/Moments

ReaF, Reaction Forces/Moments, C, Results > Reactions > Reaction Forces/Moments

S, Rea > Search Reaction Forces/Moments, C, Results > Reactions > Search Reaction Forces/Moments

ReaS, Search Reaction Forces/Moments, C, Results > Reactions > Search Reaction Forces/Moments

Def, Deformations, G, Def

S, Def > Deformed Shape, C, Results > Deformations > Deformed Shape

DeS, Deformed Shape, C, Results > Deformations > Deformed Shape

C, Def > Displacement Contour, C, Results > Deformations > Displacement Contour

DeC, Displacement Contour, C, Results > Deformations > Displacement Contour

D, Def > Search Displacements, C, Results > Deformations > Search Displacements

DeD, Search Displacements, C, Results > Deformations > Search Displacements

F, Forces, G, F

T, F > Truss, C, Results > Forces > Truss Forces

FT, Truss, C, Results > Forces > Truss Forces

B, F > Beam Forces/Moments, C, Results > Forces > Beam Forces/Moments

FB, Beam Forces/Moments, C, Results > Forces > Beam Forces/Moments

BD, F > Beam Diagrams, C, Results > Forces > Beam Diagrams

FBD, Beam Diagrams, C, Results > Forces > Beam Diagrams

P, F > Plate Forces/Moments, C, Results > Forces > Plate Forces/Moments

FP, Plate Forces/Moments, C, Results > Forces > Plate Forces/Moments

PD, F > Plate Cutting Line Diagram, C, Results > Forces > Plate Cutting Line Diagram

FPD, Plate Cutting Line Diagram, C, Results > Forces > Plate Cutting Line Diagram

W, F > Wall Forces/Moments, C, Results > Forces > Wall Forces/Moments

FW, Wall Forces/Moments, C, Results > Forces > Wall Forces/Moments

WD, F > Wall Diagrams, C, Results > Forces > Wall Diagrams

FWD, Wall Diagrams, C, Results > Forces > Wall Diagrams

M, F > Member Diagrams, C, Results > Forces > Member Diagrams

FM, Member Diagrams, C, Results > Forces > Member Diagrams

St, Stresses, G, St

T, St > Truss Stresses, C, Results > Stresses > Truss Stresses

StT, Truss Stresses, C, Results > Stresses > Truss Stresses

B, St > Beam Stresses, C, Results > Stresses > Beam Stresses

StB, Beam Stresses, C, Results > Stresses > Beam Stresses

D, St > Beam Stresses Diagram, C, Results > Stresses > Beam Stresses Diagram

StD, Beam Stresses Diagram, C, Results > Stresses > Beam Stresses Diagram

PSC, St > PSC Stress, C, Results > Stresses > Beam Stresses(PSC)

StPC, PSC Stress, C, Results > Stresses > Beam Stresses(PSC)

P, St > Plane-Stress/Plate Stresses, C, Results > Stresses > Plane-Stress/Plate Stresses

StP, Plane-Stress/Plate Stresses, C, Results > Stresses > Plane-Stress/Plate Stresses

PS, St > Plane Strain Stresses, C, Results > Stresses > Plane Strain Stresses

StPS, Plane Strain Stresses, C, Results > Stresses > Plane Strain Stresses

A, St > Axisymmetric Stresses, C, Results > Stresses > Axisymmetric Stresses

StA, Axisymmetric Stresses, C, Results > Stresses > Axisymmetric Stresses

S, St > Solid Stresses, C, Results > Stresses > Solid Stresses

StS, Solid Stresses, C, Results > Stresses > Solid Stresses

LFS, Local Direction Force Sum, C, Results > Local Direction Force Sum

V, Vibration Mode Shapes, C, Results > Vibration Mode Shapes

Bk, Buckling Mode Shape, C, Results > Buckling Mode Shapes

SG, Stage/Step history Graph, C, Results > Stage/Step history Graph

UKL, Unknown Load Factor, C, Results > unknown Load factor

bgd, Bridge Girder Diagram,C , Results > Bridge Girder Diagrams

MVT, Moving Load Tracer,G , MVT

RE, MVT > Reaction, C, Results > Moving Load Tracer > Reactions

Dis, MVT > Displacement, C, Results > Moving Load Tracer > Displacements

T, MVT > Truss Forces, C, Results > Moving Load Tracer > Truss Forces

B, MVT > Beam Force, C, Results > Moving Load Tracer > Beam Forces/Moments

MVTB, MV Tracer of Beam, C, Results > Moving Load Tracer > Beam Forces/Moments

P, MVT > Plate, C, Results > Moving Load Tracer > Plate Forces/Moment

BS, MVT > Beam Stress, C, Results > Moving Load Tracer > Beam Stresses

O, Text Output, C, Results > Text Output

Mo, Model Table, G, Mo

N, Mo > Nodes Table, C, Model > Nodes > Nodes Table

MoN, Nodes Table, C, Model > Nodes > Nodes Table

E, Mo > Elements Table, C, Model > Elements > Elements Table

MoE, Elements Table, C, Model > Elements > Elements Table

M, Mo > Material Table, C, Model > Properties > Material Table

MoM, Material Table, C, Model > Properties > Material Table

Se, Mo > Section Table, C, Model > Properties > Section Table

MoSe, Section Table, C, Model > Properties > Section Table

T, Mo > Thickness Table, C, Model > Properties > Thickness Table

MoT, Thickness Table, C, Model > Properties > Thickness Table

Su, Mo > Supports Table, C, Model > Boundaries > Supports Table

MoSu, Supports Table, C, Model > Boundaries > Supports Table

RT, Result Tables, G, RT

R, RT > Reaction, C, Results > Result Tables > Reaction

RTR, Reaction, C, Results > Result Tables > Reaction

D, RT > Displacements, C, Results > Result Tables > Displacements

RTD, Displacements, C, Results > Result Tables > Displacements

T, RT > Truss, G, RTT

RTT, Truss, L, RT > Truss

Fo, RT > RTT > Force & Stress, C, Results > Result Tables > Truss > Force & Stress

RTTFo, Force & Stress, C, Results > Result Tables > Truss > Force & Stress

F, RT > RTT > Force, C, Results > Result Tables > Truss > Force

RTTF, Force, C, Results > Result Tables > Truss > Force

S, RT > RTT > Stress, C, Results > Result Tables > Truss > Stress

RTTS, Stress, C, Results > Result Tables > Truss > Stress

B, RT > Beam, G, RTB

RTB, Beam, L, RT > RTb

Fo, RT > RTB > Force & Stress, C, Results > Result Tables > Beam > Force & Stress

RTBFo, Force & Stress, C, Results > Result Tables > Beam > Force & Stress

F, RT > RTB > Force, C, Results > Result Tables > Beam > Force

RTBF, Force, C, Results > Result Tables > Beam > Force

S, RT > RTB > Stress, C, Results > Result Tables > Beam > Stress

RTBS, Stress, C, Results > Result Tables > Beam > Stress

P, RT > Plate, G, RTP

RTP, Plate, L, RT > Plate

F, RT > RTP > Force & Stress, C, Results > Result Tables > Plate > Force & Stress

RTPF, Force & Stress, C, Results > Result Tables > Plate > Force & Stress

FL, RT > RTP > Force(Local), C, Results > Result Tables > Plate > Force(Local)

RTPFL, Force(Local), C, Results > Result Tables > Plate > Force(Local)

FG, RT > RTP > Force(Global), C, Results > Result Tables > Plate > Force(Global)

RTPFG, Force(Global), C, Results > Result Tables > Plate > Force(Global)

FU, RT > RTP > Force(Unit Length), C, Results > Result Tables > Plate > Force(Unit Length)

RTPFU, Force(Unit Length), C, Results > Result Tables > Plate > Force(Unit Length)

SL, RT > RTP > Stress(Local), C, Results > Result Tables > Plate > Stress(Local)

RTPSL, Stress(Local), C, Results > Result Tables > Plate > Stress(Local)

SG, RT > RTP > Stress(Global), C , Results > Result Tables > Plate > Stress(Global)

RTPSG, Stress(Global), C , Results > Result Tables > Plate > Stress(Global)

V, RT > Vibration Mode Shape, C, Results > Result Tables > Vibration Mode Shape

RTV, Vibration Mode Shape, C, Results > Result Tables > Vibration Mode Shape

Deg, Design, G, Deg

RC, Deg > RC-Design ,C, Design > KCI-USD03

RCD, RC-Design, C, Design > KCI-USD03
