Plastic Material

Specify a plastic material model for material nonlinear analysis.

 Plastic Material Models

• Tresca & Von Mises

Appropriate for ductile metals, which exhibit Plastic Incompressibility

•  Mohr-Coulomb, Drucker-Prager

Appropriate for brittle materials such as concrete, rock and soils, which exhibit the behavior of volumetric plastic straining

• Masonry

Appropriate for the elastic analysis finding the crack positions using masonry walls (solid elements).

Note
Masonry material model is applicable only to 8-node solid elements.

From the Main Menu select Model > Properties > Plastic Material.

Select Geometry > Properties > Plastic Material in the Menu tab of the Tree Menu.

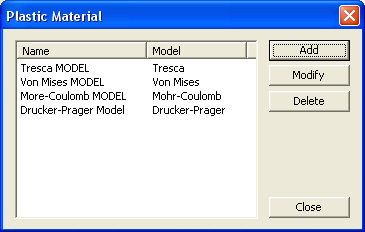

Plastic Material dialog box

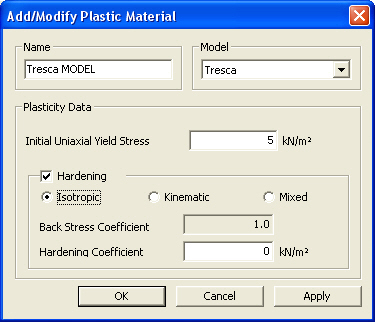

Add/Modify Plastic Material dialog box

For new or additional material properties

Click in the Plastic Material dialog box and enter the following data:

 Name: Name of plastic model

  Model: Type of plastic model

Tresca: This yield criterion is suitable for ductile materials such as metals, which exhibit Plastic Incompressibility.

Von Mises:This yield criterion is based on distortional strain energy and is the most widely used yield criterion for metallic materials.

Mohr-Coulomb:This yield criterion is a generalization of the Coulomb's friction rule and is suitable for materials such as concrete, rock and   soils, which exhibit volumetric plastic deformations.

Drucker-Prager:This criterion is a smooth approximation of the Mohr- Coulomb criterion and is an expansion of the von Mises criterion. This Drucker-Prager criterion is suitable for materials such as concrete, rock and soils, which exhibit volumetric plastic deformations.

Note

For additional details on the above 4 plastic models, refer to Material Nonlinear Analysis under Support>Analysis algorithms on MIDAS website (http://eng.midasuser.com/t_support/analysis/analysis.asp).

Masonry: This model is suitable for the elastic analysis finding the crack positions using masonry materials such as bricks, mortar joints, etc.

Plastic Data

If Tresca or Von Mises is selected, specify Initial Uniaxial (tensile) Yield Stress.

If Mohr-Coulomb or Drucker-Prager is selected, specify Initial Cohesion and Initial Friction Angle.

Initial Cohesion

Note

When normal stress is '0', Initial Cohesion is equal to the yield stress due to shear stress only.

Initial Friction Angle

Note

Initial Friction Angle, which is available only if Mohr-Coulomb or Drucker-Prager is selected as the Plastic Material Model, ranges from 0 to 90. Either use the default angle of 30 or specify the angle.

Hardening
As a material yields, hardening defines the change of yield surface with plastic straining, which is classified into the following three types.

Isotropic: Isotropic hardening

Kinematic: Kinematic hardening

Mixed: Mixed type hardening

Note

For additional details on the above 3 hardening criteria, refer to Material Nonlinear Analysis under Support>Analysis algorithms on MIDAS website (http://eng.midasuser.com/t_support/analysis/analysis.asp).

Back Stress Coefficient

Represents the extent of Hardening

'1' for Isotropic Hardening

'0' for Kinematic Hardening

between '0~1' for Mixed Hardening

Note

Total increment of Plastic Hardening can be expressed by Isotropic Hardening and Kinematic Hardening as follows:

In this case, M refers to the Back Stress Coefficient, and ranges between 0 and 1.

Hardening Coefficient

Tangent stiffness of material after yielding

In general, after the first yielding, the Hardening Coefficient either becomes smaller than the initial tangent stiffness or becomes constant.

Note

In case of von Mises model (Plastic Material), the Hardening Coefficient cannot exceed the Elastic Modulus defined in Model > Property > Material.

When Masonry is selected

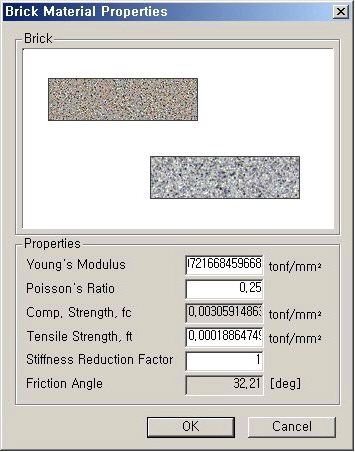

Brick Material Properties

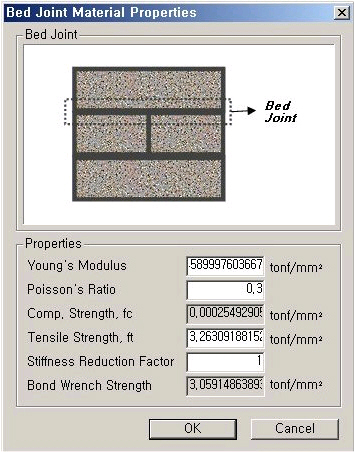

Bed Joint Material Properties

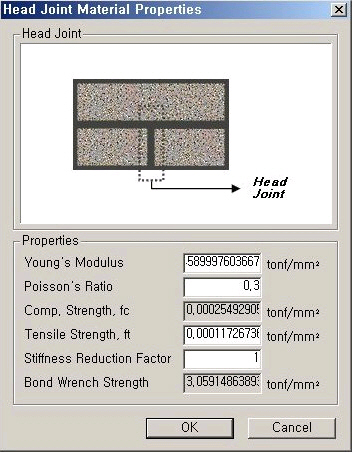

Head Joint Material Properties

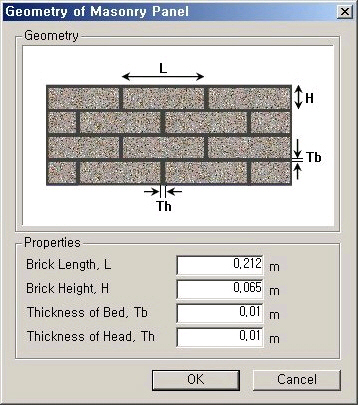

Geometry of Masonry Panel
