Elastic Link







Create or remove elastic links. Two nodes are connected by an elastic link and its stiffness is defined by the user.







From the Main Menu select Model > Boundaries > Elastic Link.



Select Geometry > Boundaries > Elastic Link in the Menu tab of the Tree Menu.

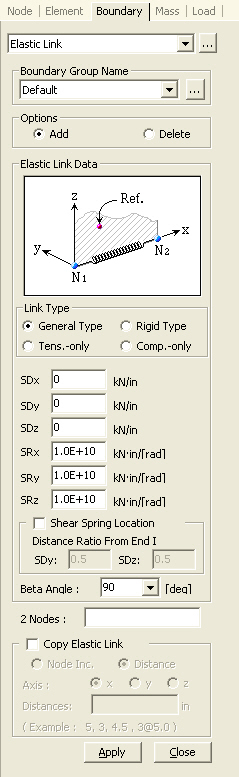

Click to the right of Elastic Link: Display the Elastic Link Table





 Boundary Group Name



Select a Boundary Group in which the specified boundary condition is included. Select "Default" if Group assignment is unnecessary. Click to the right to prompt the "Define Boundary Group" dialog box to add, modify or delete Boundary Groups.





Options



Add/Replace: Enter or replace elastic links



Delete: Delete previously entered elastic links



 Elastic Link Data



Link Type: Assign an elastic link type.



General Type: General elastic link (6dof)



Rigid Type: Rigid link element



Tens.-only: Tension-only elastic link



Comp.-only: Compression-only elastic link



Note
When an elastic link is assigned as tension-only or compression-only, only element's axial stiffness can be applied. The elastic link observes the Iteration method defined in Main Control Data identical to tension- and compression-only.



SDx: Stiffness in the element's local x-direction



SDy: Stiffness in the element's local y-direction



SDz: Stiffness in the element's local z-direction



SRx: Rotational stiffness about the element's local x-axis



SRy: Rotational stiffness about the element's local y-axis



SRz: Rotational stiffness about the element's local z-axis



Shear Spring Location

Save the locations of shear springs used in elastic link elements.



Distance Ratio From End I

Specify the locations of the shear springs relative to the length of

the elastic link elements starting from i-node.



Beta Angle: Angle defining the elastic link orientation



2 Nodes



Enter the node numbers for the 2 nodes to be elastically linked.





Copy Elastic Link



Define simultaneously a number of elastic links by copying the conditions assigned to an elastic link.



Node Inc.
Create a number of elastic link elements using a node increment.



Number of Times: Number of copies



Node Increment: Increment of node numbers



Distance
Create a number of elastic link elements using the distances between nodes.



Axis: Assign an axis direction for copying the elastic link.



Distances: Enter the number of repetitions and/or distances for copying the elastic link.
