Nodal Masses







Enter lumped mass data (Lumped Translation Mass/Rotational Mass Moment of Inertia) for nodes, or modify or delete previously entered nodal masses.







From the Main Menu select Model > Masses > Nodal Masses.



Select Geometry > Masses > Nodal Masses in the Menu tab of the Tree Menu.

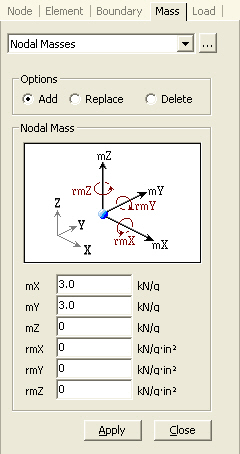

Click  to the right of Nodal Masses: Display the Nodal Mass Table

Options



Add: Enter or add new nodal lumped mass data for selected nodes



Replace: Replace previously entered nodal lumped mass data for selected nodes



Delete: Delete previously entered nodal lumped mass data for selected nodes



Nodal Mass



Enter lumped mass data with respect to GCS.



mX: Translational Lumped Mass in GCS X-direction



mY: Translational Lumped Mass in GCS Y-direction



mZ: Translational Lumped Mass in GCS Z-direction



rmX: Rotational Mass Moment of Inertia about GCS X-axis



rmY: Rotational Mass Moment of Inertia about in GCS Y-axis



rmZ: Rotational Mass Moment of Inertia about in GCS Z-axis





Note
Each mass component is calculated as below
.



- Lumped mass component =



- Rotational Mass Moment of Inertia =



Where, r is a distance from the center of mass to the center of a relevant mass component



The unit of a lumped mass [weight * (time2/length)] is the weight divided by the acceleration of gravity and the unit of a rotational mass moment of inertia [weight * (time2/length)] * length2] is the mass multiplied by the square of the length.



In the MKS or English unit system, the mass data must be entered as the weight divided by the acceleration of gravity. The acceleration of gravity is defined by Model > Structure Type. For reference, in the SI unit system, the unit for mass is [kg] or [ton]. The values of weights used in the MKS unit system must be multiplied by the acceleration of gravity to enter the modulus of elasticity or the loads in the SI unit system.

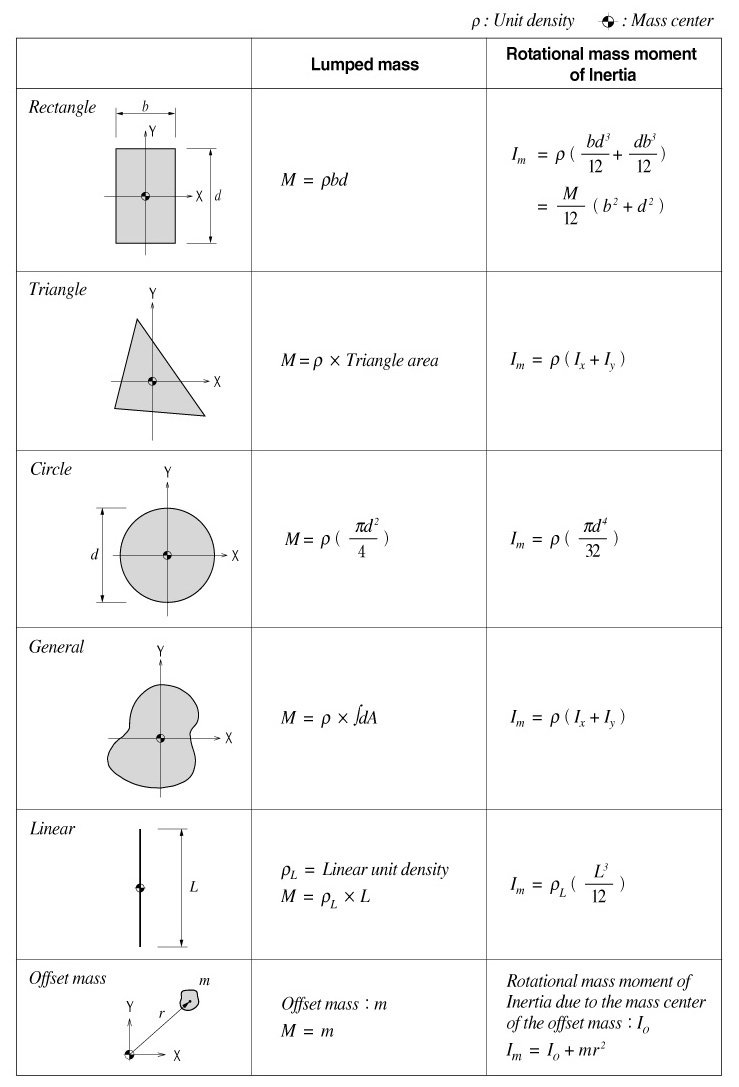

Method of calculating Mass data
