Pretension Loads







Specify pretension loads for Truss elements or tension-only elements (hook & cable).  Or, modify or delete previously specified loads.



This load cannot be used for performing analysis with materials having nonlinear properties.

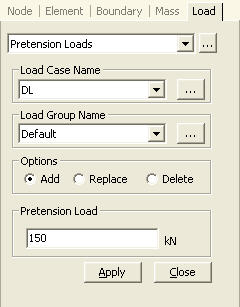

From the Main Menu select Load > Prestress Loads > Pretension Loads.



Select Static Loads > Prestress Loads >Pretension Loads in the Menu tab of the Tree Menu.







Load Case Name



Assign the load case name. Click to the right to enter, additional load cases and modify or delete existing load cases.





Load Group Name



Select the desire Load Group that will include the entered Pretension Loads data. Select "Default", if a Group assignment is unnecessary. Click to the right to add, modify or delete Load Groups.





Options



Add: To enter new or additional pretension loads



Replace: To replace previously entered pretension loads



Delete: To delete previously entered pretension loads





Pretension Load



Enter positive (tension) or negative (compression) pretension load.



Note
If Pretension Loads are unspecified in Cable Elements, MIDAS/Gen calculates the initial stresses using the weight density and the cable geometry.
