Text Output







Arrange the static and dynamic structural analysis results in a format selected by the user and produce the results as a TEXT FILE.



The functions supported by Text Output are as follows :



    • Output by Load Sets (different load sets can be assigned for each type of output)



    • Output analysis results by construction stages



    • Output forces and stresses for the selected members by material properties, section attributes, element numbers, etc.



    • Output nodal displacements and support reactions



    • Output Envelope and Summary for each element



    • Output in both element's local coordinate system and GCS for each element







From the Main Menu select Results > Text Output.









Text Output is proceeded by entering the required information step-by-step until the final result is obtained.

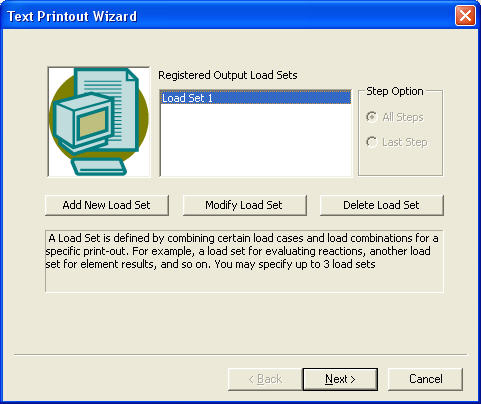

    1. If Text Output is selected, the Text Printout Wizard dialog box that selects the output load sets appears as shown in the figure.











Step Option



Specify the method of producing the output with respect to the steps when a construction stage or geometric nonlinear analysis is carried out.



All Steps: Output the analysis results for all the steps.



Last Step: Output the analysis results for the last step of the corresponding stage.





A Load Set is a collection of load combinations. Each Load Set serves a different purpose for output production, such as member force, nodal displacement, support reaction, etc.

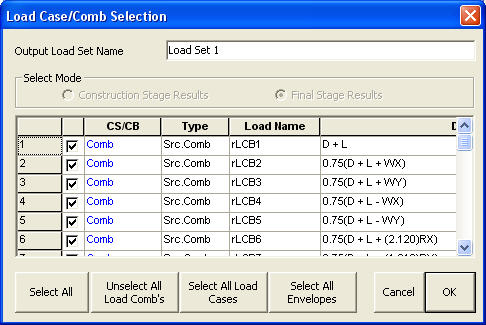

Click to display the following Load Set entry dialog box :









Enter the load set name. Check in ( ) the required load cases/load combinations/envelopes and click to register the load set. If required, click or to modify or delete the registered Load Set.



When all the required load sets are registered, click to proceed to the entry dialog box in the next step.

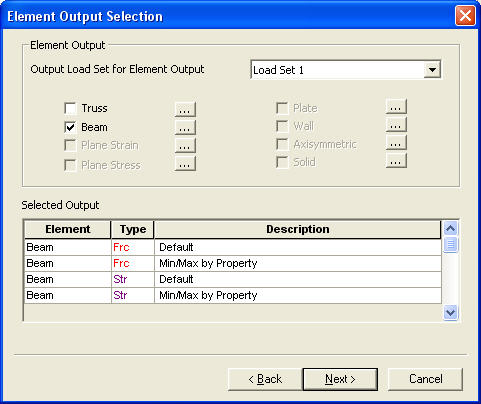

  1. In the Element Output Selection dialog box, choose the types of elements to be output and the output mode. First, select a load set from the registered load sets and the element types to be output. Only the relevant elements used in the model are activated in the dialog box. Click to the right of the element types to set the details for the element's output.

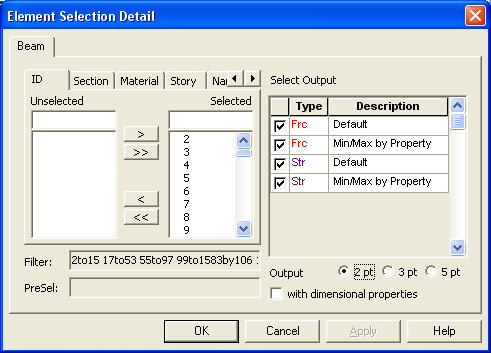

  1. Set output details by element types











The Element Selection Detail dialog box has two parts: the filter setting part for the selection of the elements to be output to the left and the part for the output type and other items to the right. Filter can be applied to ID, Section, Material, Story, Named Plane and Group. Only the elements satisfying all the attributes selected in Filter are finally output. The elements that satisfy the filter conditions are arranged in the [Filter:] field. The elements previously selected in the window before starting Text Output are arranged in the [PreSel:] field. The assemblage of these two parts is finally output.



The output modes can be assigned in Select Output. Frc and Str stand for Force and Stress respectively. If [Min/Max by Property] is selected, the maximum and minimum values for each section type can be checked.



  1. When the setting of element output is completed, click to proceed to the setting of displacements and reactions output. The procedure is similar to elements output.



Separate load sets can be applied to different items, and as such separate load combinations can be applied depending on the purpose for the output.

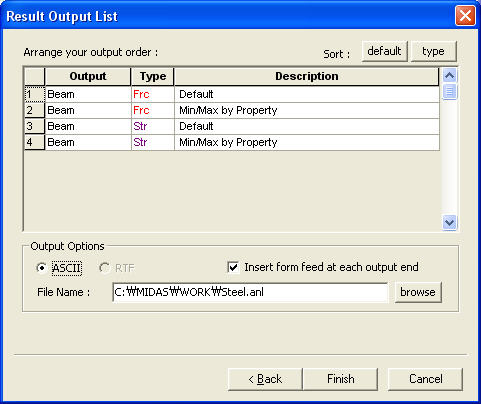

  1. The Result Output List dialog box for the output sequence and the filename is displayed.









The output order can be sorted by default and by types. Changes are possible by individually selecting and dragging with the mouse. Check in [Insert form feed at each output end] to insert a page mark in the document at the end of each output. Write the output file path and name in the File Name field and click to create the document and view the created file in the Text Editor. Refer to the Output section for producing output using the Text Editor.
