Corner Nodes
Consecutively

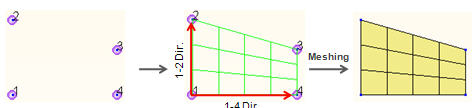

select four nodes to define a rectangular mesh area clockwise
or counterclockwise. The direction of selection determines
the normal direction of the generated mesh elements.

Parameters
Division: The number
of divisions in each direction
Bias Ratio: The ratio
of the first mesh element to the last mesh element

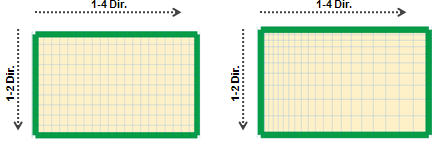

When Bias Ratio
is 1, When
Bias Ratio is 4,

|
Mesh Type
Triangle : Generate
a mesh using triangular elements.
Quadrilateral : Generate
a mesh using quadrilateral elements.
Property
Element Type
Select the element type of the planar
mesh elements to be created. There are four element types available:
Plate, Plane Stress, Plane Strain and Axisymmetric. The button to the right becomes active when the
element type is Plate or Plane Stress. Click the button to define
the Element Sub Type.
Material
: Enter the material property of the planar mesh elements to be
created. Click to the right to invoke the Material
dialog box.
Thickness
: Enter the thickness data of the planar mesh elements to be created.
Click
to the right to invoke the Thickness dialog box.
Domain
Name
: Define the name of Domain.
Delete
Boundary Line Elem.
If this option
is selected, the line elements on the periphery of the mesh area
are deleted after the mesh is generated.

Subdivide
Boundary Line Elem.
This option
can be used when 'Delete Boundary Line Elem.' is not selected.
If this option is selected, the line elements on the periphery
of the mesh area are divided according to the mesh size. The divided
line elements are registered as a Member and it can be checked
in the Member
Assignment dialog.

|
