Post Data

Function

The Post Data toolbar controls analysis case, construction stage, analysis steps, output data, etc.

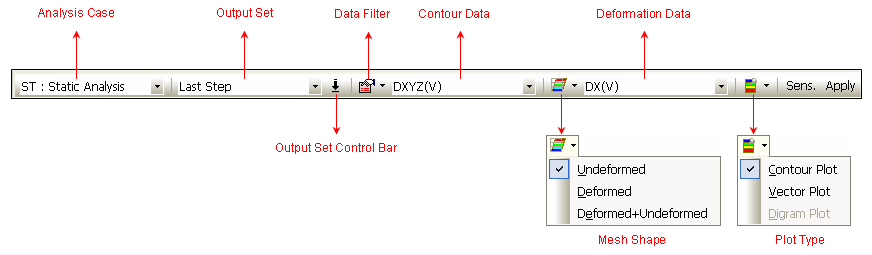

<Post Data Toolbar>

The Post Data toolbar includes the following lists and icons.


Analysis Case

It contains the list of all Analysis Cases in the model. Select a case to be displayed.


Output Set

It contains the list of all construction stages and load/time steps. Select a set to be displayed.


Control Bar

Press the button to view different output sets continuously by moving it along the bar.


Data Filter

Since there are too much data in a output set, select a data type to be listed in the Contour Data.


Contour Data

It contains the list of all result data in selected construction stages / steps and data type.


Mesh Shape

Select a mesh shape to display contour. (Deformed/Undeformed/Deformed+Undeformed).


Deformation Data

If the mesh is displayed in Deformed or Deformed+Undeformed, select a reference data to plot displacement.


Plot Type

Select a plot type to display result. (Contour / Plot).


Sens.

This option updates the result plot on the screen immediately when user changes any item in the Post Data toolbar.
