Curve: Coincide Line-Ends

Function

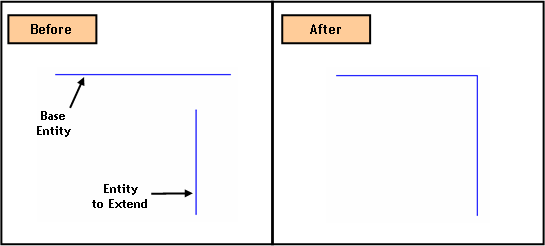

Allows two edges to meet at a single point in space by extending or trimming.

Call

Geometry > Curve > Coincide Ends

<Coincide Line-Ends>

Select First Entity to Coincide

Select one of the two edges, which will be extended and brought to meet at a single point.


Select Second Entity to Coincide

Select the second edge to be extended.

Notes

After an operation, the original edges disappear and only the extended edges remain.

If one of the two edges is long enough that only the shorter edge has to be extended to make the edges in contact, the shorter one will be extended until it reaches the longer one and the longer one will be trimmed off at the point of contact.

Upon selecting two edges consecutively, the Extend/Trim operation will be carried out automatically.  The Apply button has no effect.
