Curve: Create Polyline 3D (Wire)

Function

Create Polylines of the wire type, which consist of a series of connected straight lines in space using 3D coordinates.

Call

Geometry > Curve > Create 3D > Polyline(Wire)

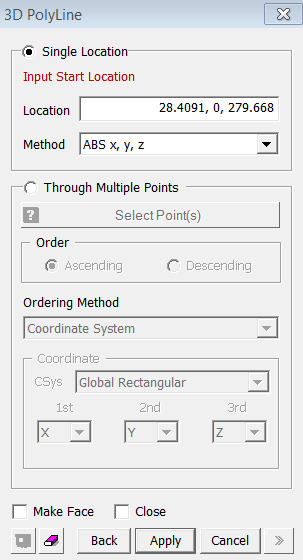

<Polyline 3D>

Location

Enter the coordinates of the locations.  The coordinates are expressed in different forms noted below.


Input Start Location

Enter the coordinates of a Start Location [(ABS x, y, z)] of a Polyline.
Input Next Location(RB to Stop)

Enter the coordinates of a subsequent point [(ABS x, y, z), (REL dx, dy, dz)], which will become connected in a straight line to the last point entered. Right-click to end the polyline creation.


<Methods of Entering Coordinates>

ABS x, y. z

Enter 3-D coordinates for an absolute location in space.
REL dx, dy, dz

Enter a relative distance from the last point entered in the 3D coordinates.

When we enter coordinates using the mouse, the coordinates are automatically entered by a left-click on the desired point, without having to press the Apply button.  However, when coordinates are typed in, either the Enter key or the Apply button needs to be pressed.

Make Face

Create a Face for a closed Polyline, using Plane Patch.  This operation will not create a Curve.  When the Make Face option is turned on, we can only create a closed Polyline, and an error message will appear if we attempt to create an open Polyline.  The Polyline must lie on a plane.


Close

The Close option connects the start and end points upon right-clicking the mouse, thereby creating a closed Polyline.
