Curve: Extend 2D









Function

Extend the length of an edge to another selected edge.  It is applicable only when the edges exist in the Work Plane.









Call

Geometry > Curve > Extend









<Extend>

Select Base Entity

Select the Base Edge to act as a reference for extension.  The base entity will remain unchanged after the Extend operation.



Select Entity to Extend

Select a straight edge, which will extend to the Base Entity.

Select two edges consecutively.  The Extend operation will be carried out automatically.  The Apply button provides no effect.

The Extend command can not be carried out if the edge to be extended does not intersect with the Base Entity.

Once the operation has been carried out, the source straight edge disappears and only the extended edge remains.

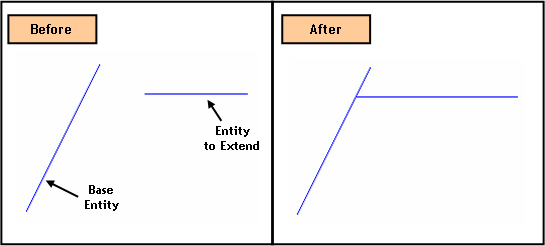

Example: Extend 2D

Coincide Line-Ends









<Instruction>

 1. After checking the message of Select First Entity to Coincide, select  First Entity.

2. After checking the message of Select Second Entity to Coincide, select  Second Entity.

Note

1. If you choose Edge. it will move to next step automatically.
