Curve: Fillet Edge









Function

Create a fillet at the location where two edges intersect.  It is applicable only when the edges exist on the Work Plane.









Call

 Geometry > Curve > Fillet.









<Fillet>

Radius

Enter the radius of a fillet.


Select First Entity to Fillet

Select a first edge of the two edges to be filleted.


Select Second Entity to Fillet

Select the other edge of the two edges to be filleted.

Select the edges by mouse clicks.  A fillet will be created based on the locations of the mouse clicks on the selected edges.

You may enter a radius and select two edges consecutively.  Additional fillets can be created automatically.  The Apply button does not play a role in this case.

A fillet is created as an independent edge.



Trim off Original Entity

When the option is checked on, the operation trims off the portion that extends beyond the location where the fillet is being created. This option is not applicable when the selected edges are arcs or circles.

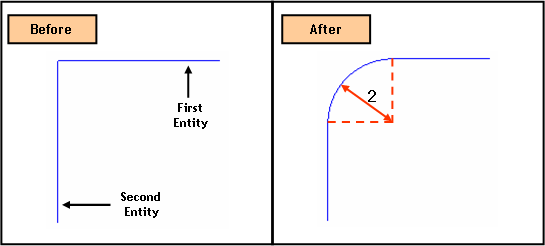

Example: Fillet Edge

Fillet Edge













<Instruction>

 1. Input 2 at  Radius.

2. After checking the message of Select First Entity to Fillet, select First Entity.

3. After checking the message of Select Second Entity to Fillet, select Second Entity.

Note

1. If you choose Edge. it will move to next step automatically.
