Modifier Feature: Draft

Function

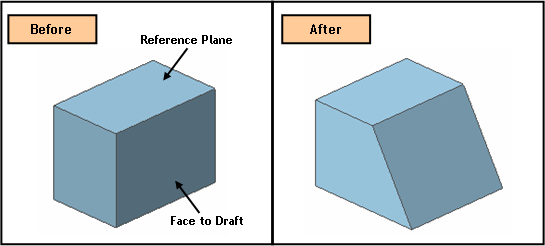

Draft (rotate) faces of a Solid or Shell to revise its shape.  It tips (rotates) the selected faces by a specified Draft Angle relative to the normal direction of a Reference Plane (Datum Plane, Face, Edge).

Call

Geometry > Modifier Feature > Draft

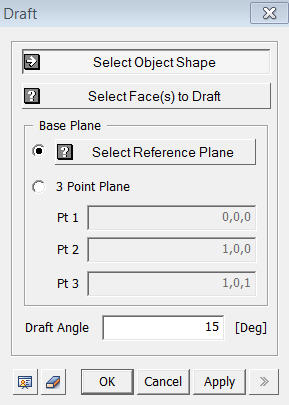

<Draft>

Select Object Shape

Select a Shape (Solid, Shell) to be drafted.


Select Face to Draft

Select sub-faces to be drafted (rotated) from the selected object.


Reference Plane

Select a Reference Face, which will become the basis for Draft Angle.


Selected Surface

Select the Reference Plane (Datum Axis, Datum Plane, Face, Edge) directly
 3-Pt Plane

Specify the Reference Plane using 3-Pt Plane. The coordinates of the 3 points may be specified using Snap.


Draft Angle

Specify a Draft (rotational) Angle.
