Transform: Mirror Shape
Function

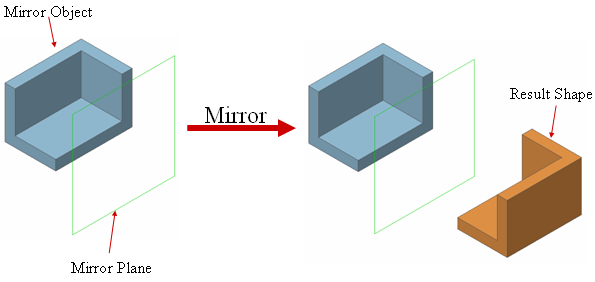

Mirror selected shapes irrespective of their shapes. The original objects may or may not be kept while creating new copied objects.
Call
Geometry
> Transform > Mirror
Select Objet Shape(s)
Select
objects to be mirrored.

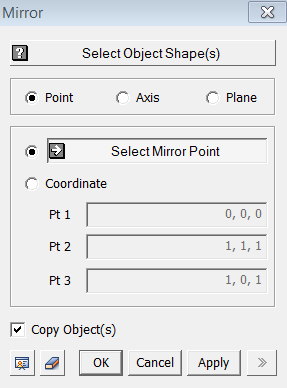

Point
Mirror selected objects about a point.
Select Mirror Point
Select
a Mirror Point (Vertex).
Coordinate
Enter the coordinates of a Mirror Point. It can be specified using Snap.
Axis
Mirror selected objects about an Axis.
Select Mirror Axis
Select
a Mirror Axis (Datum Axis, Datum Plane,
Face, Edge).
2 Point Vector
Select a Mirror Axis by a vector which is defined by two specified points. The coordinates of 2 points may be specified using Snap.
<Mirror>

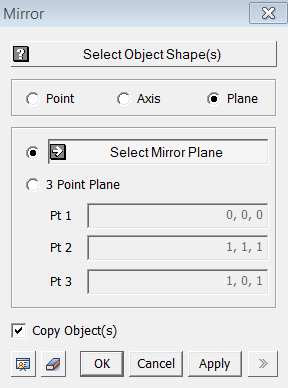

Plane
Mirror selected objects about a Plane.
Select Mirror Plane
Select
a Mirror Plane (Datum Plane, Face, Edge).
3 Point Plane
3-Pt
Plane defines an infinite plane, by which objects will be mirrored. The
coordinates of the 3 points may be specified using Snap.
Copy Object(s)
The selected objects remain intact and new mirrored objects will be created.
