Map Mesh: 4 Node Area
Function
Four nodes are consecutively selected, and 4 Node Area generates a 2D mapped mesh in between the selected nodes.
Call
Mesh > Map Mesh > 4-Node Area

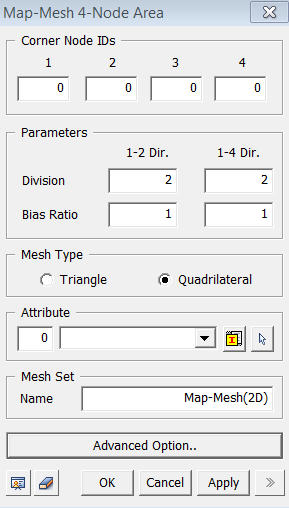

<Map-Mesh 4-Node Area>
Corner Node IDs
Select
4 Corner Node ID numbers clockwise or counterclockwise consecutively.
The direction of selection determines the normal
direction of the generated elements.
1
Select
the first Node ID. Click the ID entry field and
click on a node on the screen. Subsequent Node
IDs can be then selected on the screen.
2
Select
the second Node ID. Click the ID entry field and
click on a node on the screen. Subsequent Node
IDs can be then selected on the screen.
3
Select
the third Node ID. Click the ID entry field and
click on a node on the screen. Subsequent Node
ID can be then selected on the screen.
4
Select
the fourth Node ID. Click the ID entry field and
click on a node on the screen.
Parameters
Division
Specify
the numbers of elements to be created between the selected nodes.
1-2 Dir
Number of elements to be created between Nodes 1 and 2.
1-4 Dir
Number
of elements to be created between Nodes 1 and 4.
Bias Ratio
1-2 Dir
Size ratio of the first element to the last element along the nodes 1-2.
1-4 Dir
Size
ratio of the first element to the last element along the Nodes 1-4.
Mesh Type
Triangle
Triangle
elements are generated. Quadrilateral elements
are divided in the direction from Node 1 to Node 3.
Quadrilateral
Quadrilateral
elements are generated.
<Advanced Option>
