Mesh Set: Set Operation

Function

It general generation operations such as Union, Subtraction, Intersection, Exclusive Or for selected Mesh Sets.

Call

Mesh > Mesh Set > Set Operation

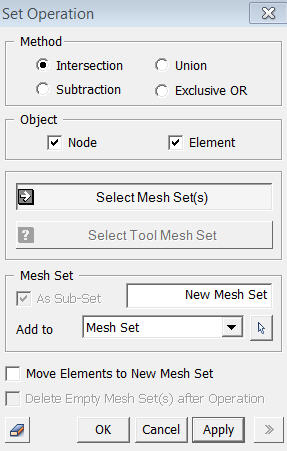

<Set Operation>

Method

Select a type of method to perform on selected Mesh Sets.

Intersection

Union

Subtraction

Exclusive OR

Object

Choose whether the applying operation will be effective node, element, or both.


Select Mesh Sets

Select Mesh Sets to be computed.

Select Tool Mesh Set

Select a Tool Mesh Set which are used in Subtraction and Exclusive OR.


Mesh Set

Move Elements to New Mesh Set

This option will remove relevant elements from original Mesh Set


Delete Empty Mesh Set(s) after Operation

This option will delete Mesh Set(s) if they becomes empty after operation.
