Remesh: Remesh Edge
Function
Remesh Edge replaces 1D Mesh of Edges (Wire, Edge) on which 1D mesh is already generated. Only meshed Edge can be selected, and previously generated mesh will be delete upon remeshing.
Call
Mesh> Remesh > Edge

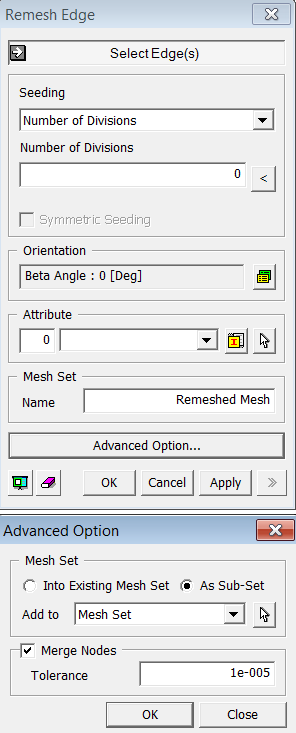

<Remesh Edge>
Select Edge(s)
Select
Edges (Wire, Edge),
which will be remeshed.
Seeding Method
Interval Length
Specify
the element size.
Number of Divisions
Specify
the number of elements to be created along the selected edges.
Linear Grading (Length)
The
spacing of dividing nodes is linearly controlled along the selected edges
by specifying the lengths of the start and end elements.
SLen
SLen
stands for Start Length. Enter the element size
(length) at the start points of the edges.
ELen
ELen
stands for End Length. Enter the element size (length)
at the end points of the edges.
Div
Div
stands for Division. Enter the number of divisions
along the selected edges. If 0 is entered, the
program will appropriately divide the edges using the specified lengths.
CPara
CPara
stands for Concentration Parameter, which defines the range in which Linear
Grading will be applied. 0 represents the start
point, and 1 represents the end point. For example,
if 0.3 is entered, the selected edges are uniformly divided at the spacing
of SLen from the start points to the points of the
0.3 length ratio. Linear Grading is applied to
the remaining parts of the edges..
Linear Grading (Ratio)
The
spacing of dividing nodes is linearly controlled along the selected edges
by specifying the length ratio of the start and end elements.
Ratio
Enter
the ratio of the element size (length) at the start points of the edges
to the size at the end points.
Div
Enter
the number of divisions along the selected edges.
CPara
CPara
stands for Concentration Parameter, which defines the range in which Linear
Grading will be applied. 0 represents the start
point, and 1 represents the end point. For example,
if 0.3 is entered, the selected edges are uniformly divided at the spacing
computed from Div and Ratio from the start points to
the points of the 0.3 length ratio. Linear Grading
is applied to the remaining parts of the edges.
Symmetric Seeding
Symmetric
Seeding is applicable for Linear Grading. It applies
Linear Grading Seeding from the start points to the midpoints of the selected
edges. Symmetrical Seeding is applied to the remaining
half parts about the midpoints.
Hide Object Edge(s) After Meshing
This option hides the object edges after generating meshes.
Notes
If the object Edges have been seeded previously, the size information will still be applied during remeshing. In order to apply new size information, delete the previous size control.
