Boundary: Change Boundary Set

Function

Boundary conditions of a predefined Boundary Set are copied or moved to another Boundary Set or deleted. When boundary conditions from each construction stage are created for construction stage analysis, copying or modifying the previously defined Boundary Sets may prove to be more convenient.

Call

 Model > Boundary > Change Boundary Set

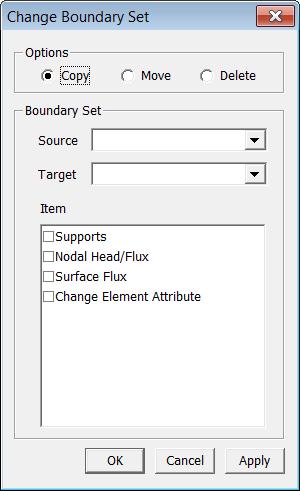

<Change Boundary Set>

Option

Copy

Copy the boundary conditions included in Source Set to Target Set

Move

Move the boundary conditions included in Source Set to Target Set
Delete

Delete the boundary conditions included in Source Group


Boundary

Source

Original Boundary Set

Target

Destination Boundary Set (inactivated when Delete is selected)
Item

Select the types of boundary conditions to be copied, moved or deleted.
