Boundary: Change Element Attribute

Function

Change Element Attribute adds/replaces/deletes Attribute data in elements.

Call

Model > Boundary > Change Element Attribute

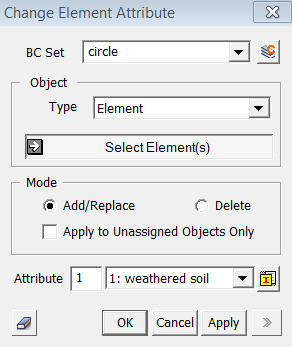

<Change Element Attribute>

BC Set

Select a Boundary Set in which the specified boundary condition is included.


Object

Type

Element

Select elements whose Attributes need to be changed.


Mode

Add/Replace

Add/Modify the  boundary condition of Change Element Attribute

Delete

Delete the boundary condition

Apply to Unassigned Objects Only

When adding new boundary condition, this option applies only to the unassigned elements.


Attribute

Select an Attribute that will be applied in the boundary condition. To create a new Attribute, click button.
