Boundary: Change Element Attribute for CS (Construction Stage)

Function

This function automatically assigns Change Element Attribute boundary condition to the selected Mesh Set based.  Often times,  there are too many construction stages which require that the  material or attributes be modified. The user may have to spend considerable time to assign the boundary condition for each construction stage. This function automatically assigns the boundary condition of the elements and organizes their Boundary Sets using a naming convention.

Call

Model > Boundary > Change Element Attribute for CS

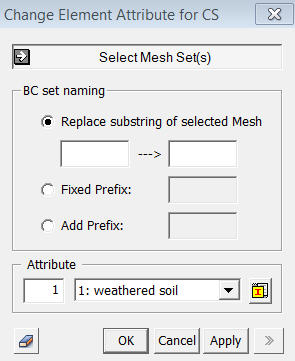

<Change Element Attribute for CS>

BC set naming

Replace sub-string of selected Mesh

It replaces only suffix of the names of the Selected Mesh Sets.
Fixed Prefix

It gives new name to the BC sets instead of the existing Mesh Set names.
Add Prefix

It adds a prefix in front of the Mesh Set names.


Attribute

Select an Attribute that will be applied in the boundary condition. To create a new Attribute, click button.
