Element: Connection









Function

Create connection element between nodes.









Call

 Model > Element > Connection

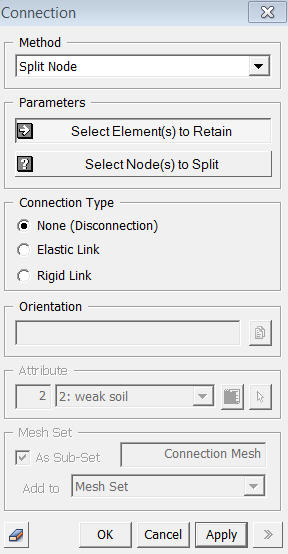

<Connection: Split Node>



<Split Node>

Disconnects connectivity of nodes.  At the same time, elastic links, rigid links and interface elements can be created.


Select Element(s) to Retain

Select elements (Face, Edge, Mesh, Element) to be disconnected.


Select Node(s) to Split

Select nodes (Face, Edge, Node) in the selected elements which will be disconnected.


Connection Type

Assign a method of dealing split nodes.


None (Disconnection)

No operation will be performed after split. Free Edge will take place.
Elastic Link

Connect split nodes with Elastic Link.
Rigid Link

Connect split nodes with Rigid Link.



<Common Features>



Orientation



Attribute



Mesh Set

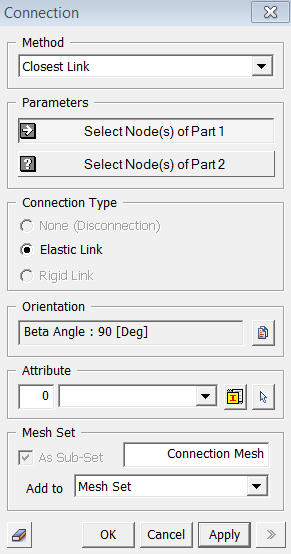

<Connection: Closest Link>



<Closest Link>

Create Elastic Link between the closest nodes from two independent groups.



Select Node(s) of Part 1

Select nodes (Face, Edge, Node) of the first group.


Select Node(s) of Part 2

Select nodes (Face, Edge, Node) of the second group.


Connection Type



Elastic Link

Connect split nodes with Elastic Link.




Orientation



Attribute



Mesh Set

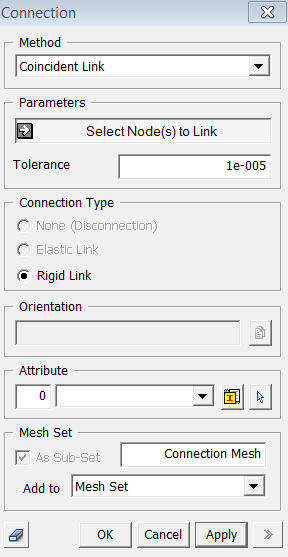

<Connection: Coincident Link>



<Coincident Link>

Create Rigid Link which connects all nodes that are spaced within specified tolerance.


Select Node(s) to Link

Select nodes (Face, Edge, Node) that will be connected with link elements.


Tolerance

Enter the tolerance which becomes the maximum distance between nodes for creating link elements.


Connection Type


Rigid Link

Connect split nodes with Rigid Link.



Orientation



Attribute



Mesh Set
