Display Output Coordinate System (Plate)

Function

Displays projected X-Y user coordinate system (UCS) on plate elements.  This option is not available for gauging plates.

Call

 Model> Element > Display Output Coordinate System (Plate)

1) The output coordinate system  for plate elements defines a X-axis by projecting the user-defined X-axis in the plane of the element.

2) Plate elements where an user-defined X-axis is in the direction normal to the element will prompt a warning message  in the Output window.

3) Selecting this options displays  analysis results of the generated plate elements with respect to the established coordinate system.

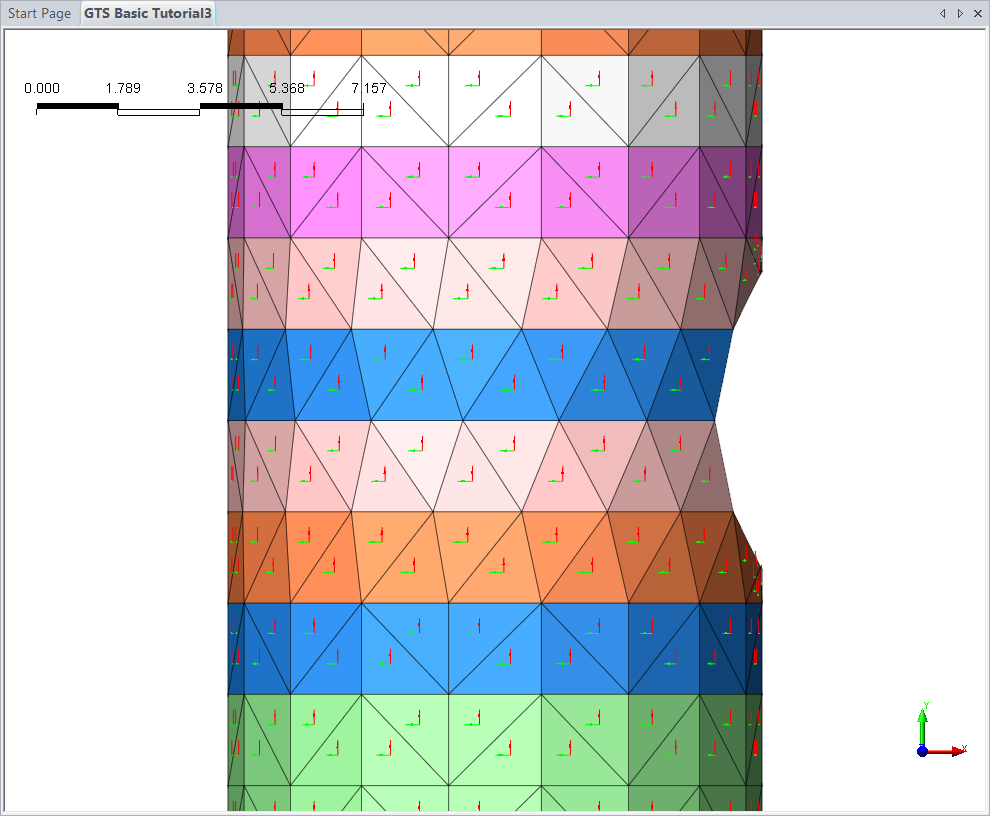

Tunnel lining displaying plate element coordinate system
