Element: Extract Element
Function
Extract 1D elements from 2D elements and 2D elements from 3D elements.
Call
Model > Element > Extract Element

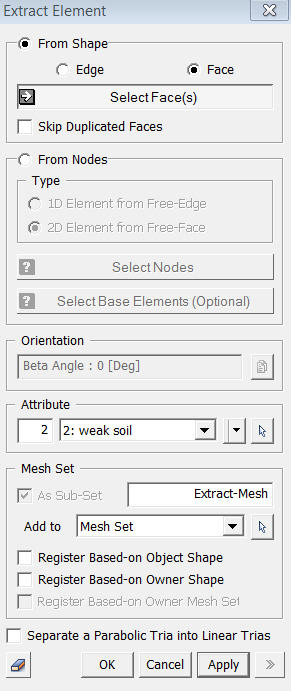

<Extract Element>
From Shape
The
Extract Shape function is capable of creating elements simply by selecting
either an edge or face from only geometric shapes. Note,
prior to extraction, a mesh set must be generated for the corresponding
geometric shape.
Edge
Edges
must be selected directly from the geometry. Note,
the geometry must be meshed prior to extraction.
Face
Faces must be selected directly from the geometry. Note, the geometry must be meshed prior to extraction.
Skip Duplicated Faces
Duplicates faces in the geometric form will be ignored if this option is selected.
From Nodes
Select Nodes
Extract
mesh from nodes (Mesh, Node) which
belong to Free Edges or Free Faces.
Select Base Elements
Select elements that will be used in Extraction. Only nodes that belong to the base nodes will be extracted.
Type
Select an element type to be extracted.
1D Element form Free-Edge
Extract
1D mesh from Free Edge.
2D Element form Free
Extract
2D mesh from Free Face.
Register Based on Object Shape
When
extracting meshes from more than one entities (including sub-Shapes) in
a Shape, this option registers Mesh Sets based on the entities. For example,
when 3 Faces of 1 Solid are extracted, 3 Mesh Sets will be created for
each face.
Register Based on Owner Face
When extracting meshes from more than one Shape, this option registers Mesh Sets based on the Shapes. For example, when 8 Faces from 2 Solids are extracted, 2 Mesh Sets will be created for each Solid.
Register Based on Owner Mesh Set
When extracting meshes from more than one existing Mesh Sets, this option registers Mesh Sets based on the Owner Mesh Sets.
Separate a Parabolic Tria into Linear Trias
This option extracts low order elements from high order elements.
