Element: Table

Function

Enter or modify connectivity data for element in a spreadsheet format table. In the table, it is possible to add, modify, or delete elements.

Call

 Model > Element > Table

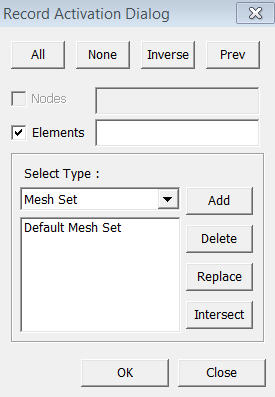

<Record Activation>

All

View all elements in the table


None

Clear all listed elements.


Inverse

Inverse the selection of element list.


Prev

Bring back the previous selection of element list.


Elements

Enter element ID to display in the table. It can be typed in directly or entered automatically using functions in Record Activation Dialog. Consecutive IDs will be listed as "AtoB" format.


Select Type

Mesh Set

Select IDs based on Mesh Set. After checking desired Mesh Sets, click 'Add' button to register relevant elements in the table.
Analysis Case

Select IDs based on Analysis Case. After checking desired Analysis Case, click 'Add' button to register relevant elements in the table.
Add

Add the selected data in Elements

Delete

Delete the selected data from Elements.
Replace

Replace the existing data with the selected data in Elements.
Intersect

Leave only duplicated element IDs of the existing data and the selected data.

Notes

Refer to Table Control for detail direction of using table.
