Element: Measure

Function

Check element length(1D), area(2D), and volume(3D).

Call

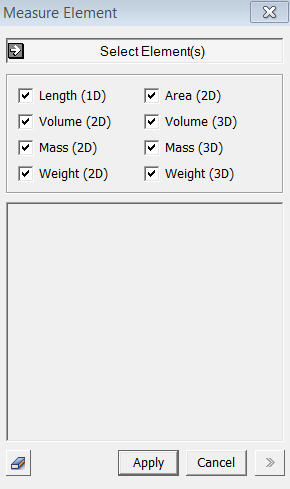

Model > Element > Measure Element

<Measure Element>

Select Element(s)

Select element to be measure.


Length(1D)

Check length of selected 1D elements.


Area(2D)

Check area of selected 2D elements.

Volume(2D)

Check volume of selected 2D elements.


Volume(3D)

Check volume of selected 3D elements.

Description:  This function allows users to measure element properties.

1D :  Length

2D :  Volume, Area,  Mass, Weight

3D:  Volume, Mass Weight
