Node: Align

Function

Aligns selected nodes to a reference node.

Call

 Model > Node > Align

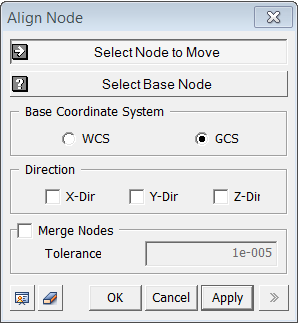

<Align node>

Select Base Node(s)

Select a Base Node which becomes a reference to align.


Select Move Node(s)

Select nodes to align.

Base Coordinate System

Select the coordinate system on which the nodes will be aligned.

WCS

Workplane Coordinate System.

GCS

Global Coordinate System.

Direction

Select a direction to be aligned.

X-Dir

Y-Dir

Z-Dir

Merge Nodes
