Node: Merge

Function

Merge 2 or more nodes.

Call

Model > Node > Merge

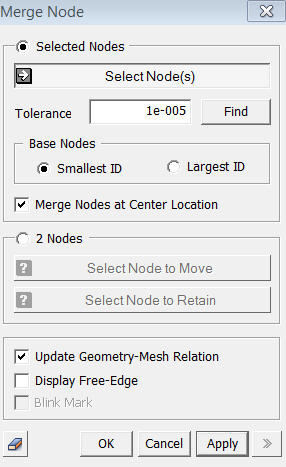

<Merge Node>

Selected Node(s)

Select Node(s) to merge. That Node(s) is merged at an average point.


Tolerance

Nodes are merged only if the length between Nodes is smaller than selected Tolerance. If two Nodes are selected on work window, the length are put as Tolerance automatically.

2 Nodes

After a Nodes moves to another one's rotation and merge two Nodes.

Display Free Edge

It displays free edges on model. They appear in red.

Blink Mark

The nodes on free edges will brink so that it becomes more noticeable.

Notes

Display Free Edge

Represent Free Edge with red color on screen.


Blink Mark

Represent Nodes to find Free Edge easily.
