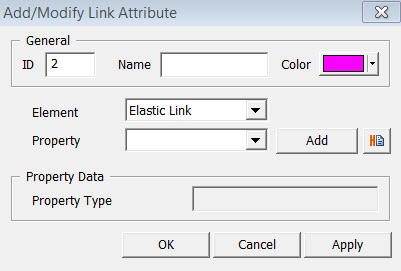

<Add/Modify Link Attribute> General ID Attribute number Name Attribute Name Color Select the color of Attribute Element Type Select a element type to be created. GTS provides the following element types. Elastic Link An elastic link element connects two nodes to act as a single element, while its stiffness is defined by the user. Truss or beam elements may represent elastic links. Rigid Link The rigid link constrains the geometric relative movements of a structure. Geometric constraints of relative movements are established at a particular node to which one or more nodal degrees of freedom (d.o.f.) are subordinated. Property Select Property data that will be included in the Attribute. To add new Property data, click or button.

Attribute - Link

General

Attribute number

Name

Attribute Name

Color

Select the color of Attribute

Element Type

Select a element type to be created. GTS provides the following element types.

Elastic Link

An elastic link element connects two nodes to act as a single element, while its stiffness is defined by the user. Truss or beam elements may represent elastic links.

Rigid Link

The rigid link constrains the geometric relative movements of a structure. Geometric constraints of relative movements are established at a particular node to which one or more nodal degrees of freedom (d.o.f.) are subordinated.

Property

Select Property data that will be included in the Attribute. To add new Property data, click or button.
