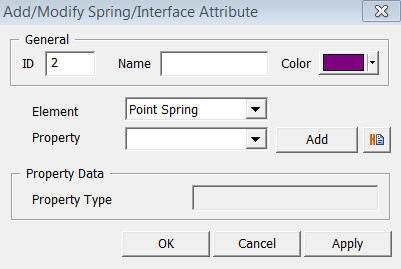

Attribute - Spring / Interface

General

ID

Attribute number

Name

Attribute Name

Color

Select the color of Attribute

Element Type

Select a element type to be created. GTS provides the following element types.

Point Spring

Point Spring is an elastic boundary element.

Matrix Spring

Matrix Spring is a matrix element that defines an elastic boundary element.

Interface(2D)

Interface elements allows slippage between dissimilar materials or between elements having distinctively different stiffness.

Interface(3D)

Interface elements allows slippage between dissimilar materials or between elements having distinctively different stiffness.

Property

Select Property data that will be included in the Attribute. To add new Property data, click or button.
