Material - Elastic

Introduction

The Linear Elastic model is the simplest model in the program. Strain is directly proportional to stress. The slope of linear curve is constant, which depends on the Modulus of Elasticity and Poisson's Ratio.

Parameters

The required parameters for Linear Elastic model are listed below.

Modulus of Elasticity

Poisson's Ratio

Cohesion

Friction Angle

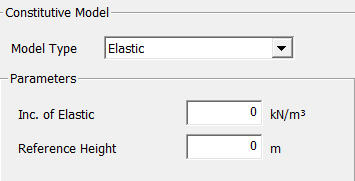

Increment of Elastic Modulus

MIDAS/GTS can consider a variation in the Young's Modulus of Elasticity of elements with the height. If the increment of increase in Elastic Modulus is zero, the Elastic Modulus is constant throughout the model.

Reference Height

Note:

Elastic and Mohr-Coulomb models are only used in SRM due to c and phi dependency.

There are no limits when using material models in SAM.

*Please refer to Analysis Manual for detail description of each material parameters.
