Renumber

Function

Renumber the existing element (node) numbers in the order of priority for selected coordinate system.

Call

Model > Renumber

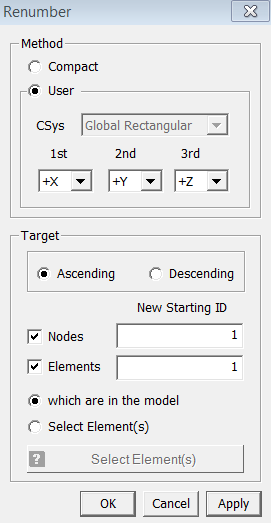

<Renumber>

Method

Compact

Reassign all elements or nodes starting from 1.

User

Renumbering selected elements or nodes based on user-defined rule.

Csys

Select the reference coordinate system.

1st

Assign an axis with the highest priority when renumbering elements or nodes.

2nd

Assign an axis with the second priority.

3rd

Assign an axis with the last priority.

Target

Select elements or nodes to be renumbered.

Ascending/Descending

Select the ordering sequence between Ascending or Descending

New Starting ID

Nodes

Renumber node numbers.

Elements

Renumber element numbers.

Which are in the model

Renumber all nodes/elements in the model.

Which are in the selected element(s)

Renumber only selected nodes/elements in the model.

Notes

Sorting Order is determined by the coordinates. In other words, the numbering starts in a sequence from the node with the smallest coordinate to the node with the largest coordinate in the axis with the highest priority. When the coordinates of more than one node are equal in an assigned axis, the numbering restarts in the axis with the next priority from the node with the smallest coordinate
