Transform: Mirror Mesh
Function
Mirror selected Mesh Sets irrespective of their shapes. The original Mesh Sets may or may not be kept while creating new copied objects.
Call
Geometry > Transform > Mirror

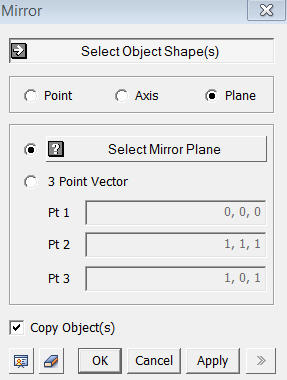

<Mirror Mesh>
Select Mesh(es)
Select
Mesh Sets (Mesh) to be mirrored.
Method
Point
Mirror selected Mesh Sets about a point,
Select Mirror Point
Select
a Mirror Point (Vertex).
Axis
Mirror selected Mesh Sets about an Axis.
Select Mirror Axis
Select
a Mirror Axis (Datum Axis, Datum Plane,
Face, Edge).
Plane
Mirror selected Mesh Sets about a Plane.
Select Mirror Plane
Select
a Mirror Plane (Datum Plane, Face, Edge)
Use 3-Point Plane
3-Pt
Plane defines an infinite plane, by which Mesh Sets will be mirrored.
The coordinates of the 3 points may be specified
using Snap.
Copy Mesh Object
Copy
the selected Mesh Sets.
Register as New Set
This
option registered newly copied objects into new Mesh Sets individually.
Include LBCs
This option applies the same load and boundary condition
to the copied nodes and elements.
