Parametric Study
Function

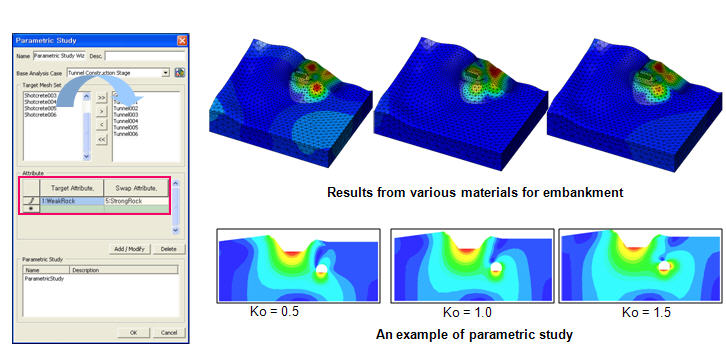

Perform Parametric Study Analysis by changing Attributes of Mesh Sets. Helps analyze a single model file with various material properties. Reflects the behavioral difference due to change in material parameters.
Call
Analysis > Parametric Study

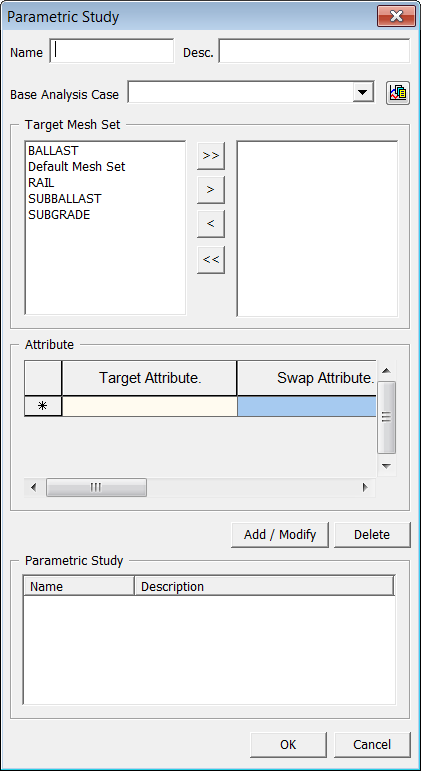

<Parametric Study>
Name
Enter
the name of Analysis Case. This name will be used in the result file name.
Description
Enter
a brief description of the analysis case.
Base Analysis Case
Select a Analysis Case which will be used in Parametric Study.
Target Mesh Set
Select a Mesh Set to change its Attribute.
Attribute
Select a Attribute which will replace the existing one.
Add
Click to create the Parametric Study Analysis Case.
Run
Perform the Parametric Study.
