Extract Result

Function

Extract Result enable to output only desired data from the analysis result.

Call

Result > Extract Result

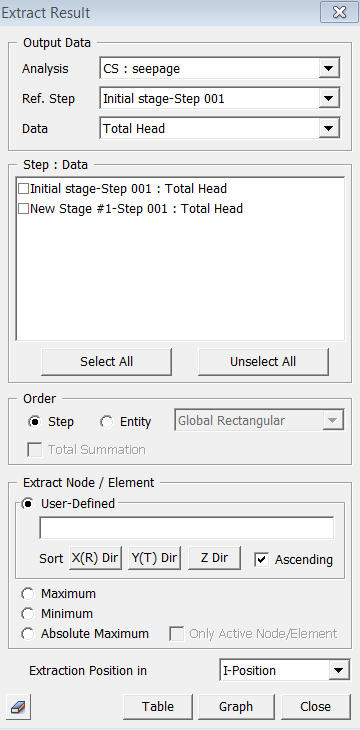

<Extract Result>

Analysis Set

Select an Analysis Set from where the data result is extracted.


Ref. Step

Select the reference step which includes the data.


Data

Select the data to be extracted.


Set : Data

Select the steps from where the data result is extracted.


Order

Step

Sort the extracted result by the steps in a table.

Node

If the extracting result is a nodal value, an option is provided to sort the extracted results by the selected coordinate system.


Nodal Result Extraction

User Defined

Select the node ID to be extracted.
Maximum

Extract the maximum value.
Minimum

Extract the minimum value.
Absolute Maximum

Extract the absolute maximum value.


Extract Position on 1D Element

Select a position of 1D elements where the result is to be extracted.  Refer to "Center" or "Center+Node"  under  "General Analysis Control" for details.

Table

Extract the results in a table.

Graph

Extract the  results as a graph.

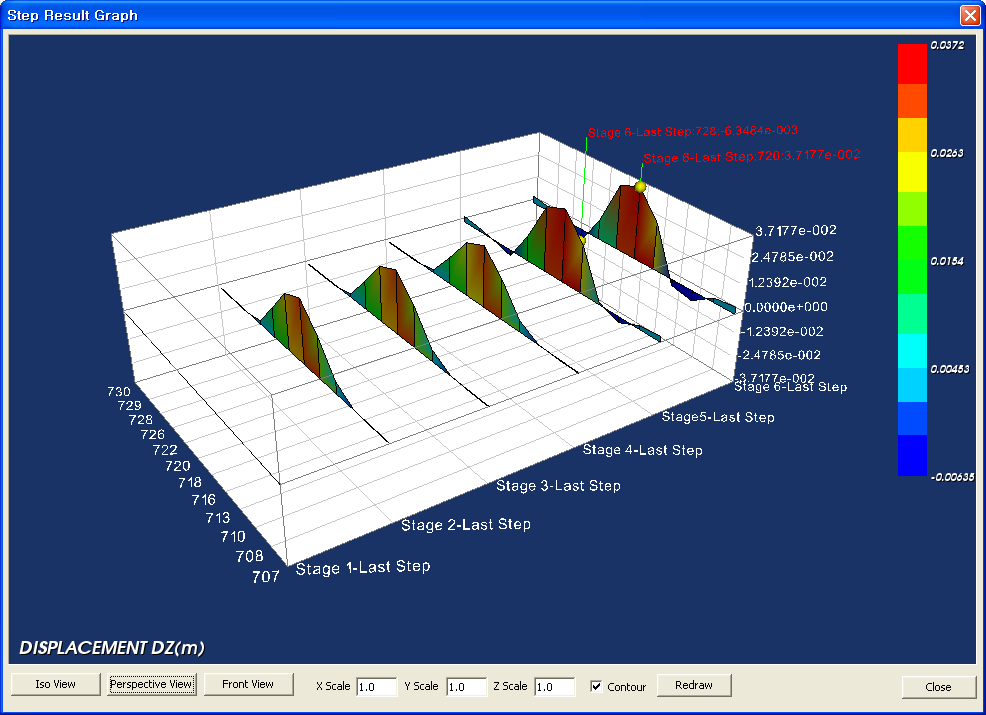

<Extract Result Graph>

It projects the extracted result to a 3 dimensional graph. X-axis represents Node/Element; Y-axis represents Stage/Step; Z-Axis represents result value.

Iso View

Display the graph in Iso-view.

Perspective View

Display the graph in perspective view.

Front View

Display the graph in Front View (negative Y-direction).

X Scale, Y Scale, Z Scale

Determine the scale factors for X, Y, and Z Axes.

Contour

Display the graph with contour.

Redraw

Update the graph.
