Seepage Analysis: Flow Quantity

Function

Calculate the flow quantity through select nodes.

Call

Result > Seepage Analysis > Flow Quantity

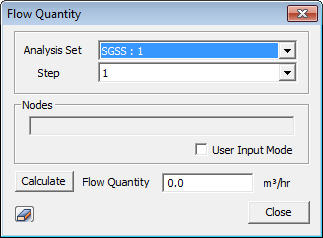

<Flow Quantity>

Analysis Set

Select an Analysis Case to calculate the flow quantity.


Step

Select a step for the flow quantity.


Nodes

Specify nodes where results will be extracted from. Nodes can be selected directly from the model or nodal number can be directly inputted.

User Input Mode

Check on : Enables entry of  nodal ID to calculate the flow quantity.

Check off:  Enables nodal selection directly from model to calculate the flow quantity.

Calculate

Click [Calculate] to compute flow quantity.

Note:
