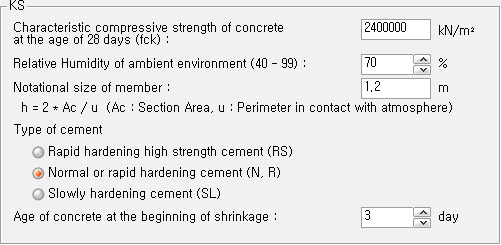

Korean Standard(도로교
설계기준 / 콘크리트 설계기준) |
.gif)
Compressive
strength of concrete at the age of 28 days
: 28일 압축강도
Relative
Humidity of ambient environment(40-99)
: 외기 습도
Notational
size of member : 구조물의 기하형상 치수

1. 단면변화로 인해 요소별로 "h" 값이 다른 경우에는 Change Element Dependent Material
Property 에서 요소별 "h"를 입력한다.
2. 시공단계 합성단면을 사용한 경우에는 Composite
Section for Construction Stage 에서 파트별 "h"
값을 직접 입력해야 한다.
Type
of cement : 시멘트 종류
Age
of concrete at the beginning of shrinkage
: 타설후 건조수축 시작 시간
: 자동계산된
시간의존적 재료특성을 그래프 형식으로 출력합니다.
|

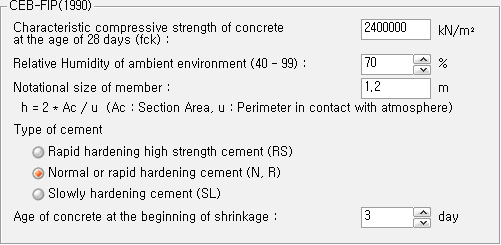

CEB-FIP
(1990) |
(f).gif)
Compressive
strength of concrete at the age of 28 days
: 28일 압축강도
Relative
Humidity of ambient environment(40-99)
: 외기 습도
Notational
size of member : 구조물의 기하형상 치수

1. 단면변화로 인해 요소별로 "h" 값이 다른 경우에는 Change Element Dependent Material
Property 에서 요소별 "h"를 입력한다.
2. 시공단계 합성단면을 사용한 경우에는 Composite
Section for Construction Stage 에서 파트별 "h"
값을 직접 입력해야 한다.
Type
of cement : 시멘트 종류
Age
of concrete at the beginning of shrinkage
: 타설후 건조수축 시작 시간 |

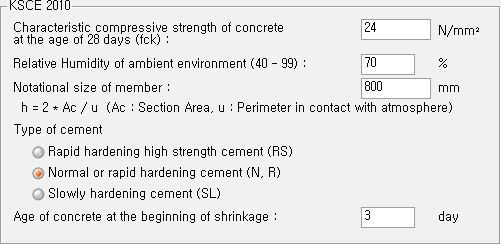

CEB-FIP
(1978) |
.gif)
Compressive
strength of concrete at the age of 28 days
: 28일 압축강도
Relative Humidity of
ambient environment(40 - 100) : 외기 습도
Notational
size of member : 구조물의 기하형상 치수

1. 단면변화로 인해 요소별로 "h" 값이 다른 경우에는 Change Element Dependent Material
Property 에서 요소별 "h"를 입력한다.
2. 시공단계 합성단면을 사용한 경우에는 Composite
Section for Construction Stage 에서 파트별 "h"
값을 직접 입력해야 한다.
Type
of cement : 시멘트 종류
Age
of concrete at the beginning of shrinkage
: 타설후 건조수축 시작 시간 |

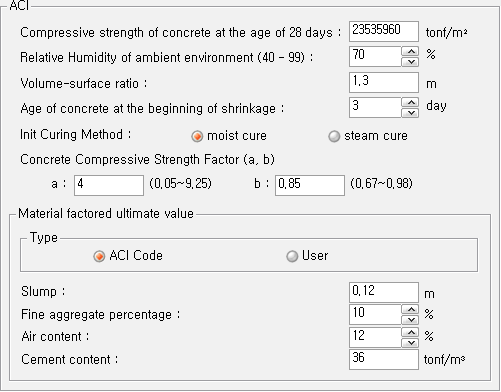

ACI |
.gif)
Compressive
strength of concrete at the age of 28 days
: 28일 압축강도
Relative
Humidity of ambient environment(40-99)
: 외기 습도
Volume-surface
ratio : 체적-표면적 비
Age
of concrete at the beginning of shrinkage
: 건조수축이 시작되는 시기의 콘크리트 재령
Init.
Curing method : 초기 양생 방법
moist
cure : 습윤양생
steam
cure : 증기양생
Concrete Compressive
Strength Factor (a,b) : 시멘트 종류에 따른 콘크리트의
압축강도 계수
Material
factored ultimate value : 콘크리트의 특성을 반영한
극한 상수를, ACI Code에 따라 계산하도록 하거나 사용자가 직접 정의합니다.
Type
ACI Code를
선택한 경우
Slump
: 콘크리트 슬럼프 값
Fine
aggregate percentage : 잔골재율
Air
content : 공기량
Cement
content : 시멘트량
User를 선택한
경우
Material
factored ultimate creep coefficient (1.3 ~ 4.15)
: 콘크리트의 특성이 반영된 극한 크리프 계수
Material
factored ultimate shrinkage strain : 콘크리트의
특성이 반영된 극한 건조수축 변형도 |

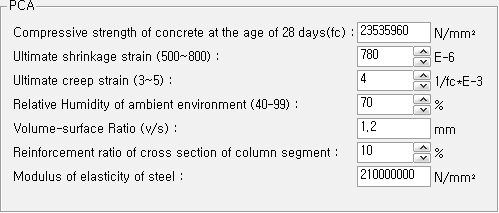

PCA |
.gif)
Compressive
strength of concrete at the age of 28 days(fc)
: 28일 압축강도
Ultimate
shrinkage strain : 극한 건조수축 변형도
Ultimate
creep strain : 극한 크리프 변형도
Relative
Humidity of ambient environment : 외기 상대습도
Volumn-surface
Ratio(v/s) : 체적-표면적비
Reinforcement
ratio of cross section of column segment
: 기둥의 철근비
Modulus
of elasticity of Steel : 철근의 탄성계수 |

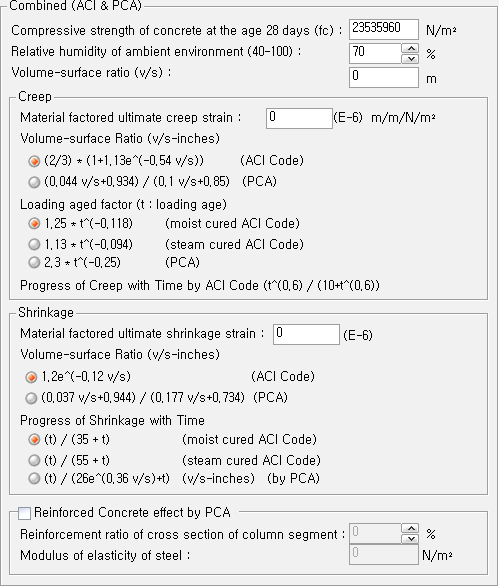

Combined
(ACI & PCA) |
.gif)
Compressive
strength of concrete at the age of 28 days(fc)
: 28일 압축강도
Ultimate
shrinkage strain : 극한 건조수축 변형도
Ultimate
creep strain : 극한 크리프 변형도
Relative
Humidity of ambient environment : 외기 상대습도
Volumn-surface
Ratio(v/s) : 체적-표면적비
Reinforcement
ratio of cross section of column segment
: 기둥의 철근비
Modulus
of elasticity of Steel : 철근의 탄성계수 |
Combined
(ACI & PCA) |
.gif)
Compressive
strength of concrete at the age of 28 days(fc)
: 28일 압축강도
Relative
Humidity of ambient environment : 외기 상대습도
Volumn-surface
Ratio(v/s) : 체적-표면적비
Creep
Material
factored ultimate creep strain : 콘크리트의
특성이 반영된 극한 크리프 변형도
Volumn-surface
Ratio : 체적-표면적비의 계산방법
Loading
aged factored (t : loading age) : 재령계수의
계산방법
Shrinkage
Material
factored ultimate creep strain : 콘크리트의
특성이 반영된 극한 크리프 변형도
Volumn-surface
Ratio : 체적-표면적비의 계산방법
Progress
of shrinkage with Time : 시간의 경과에 따른 건조수축의
진행
Reinforced
concrete effect by PCA
Reinforcement
ratio of cross section of column segment
: 기둥의 철근비
Modulus
of elasticity of Steel : 철근의 탄성계수 |

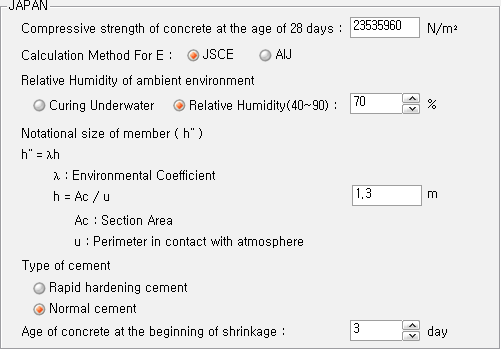

Japanese
Standard |
.gif)
Compressive
strength of concrete at the age of 28 days
: 28일 압축강도
Relative
Humidity of ambient environment(40-99)
: 외기 습도
Curving
Underwater : 수중양생
Relative
Humidity(40~90) : 상대습도
Notational
size of member : 구조물의 기하형상 치수

1. 단면변화로 인해 요소별로 "h" 값이 다른 경우에는 Change Element Dependent Material
Property 에서 요소별 "h"를 입력한다.
2. 시공단계 합성단면을 사용한 경우에는 Composite
Section for Construction Stage 에서 파트별 "h"
값을 직접 입력해야 한다.
Type
of cement : 시멘트 종류
Age
of concrete at the beginning of shrinkage
: 타설후 건조수축 시작 시간
: 자동계산된 시간의존적 재료특성을 그래프 형식으로 출력합니다.
|

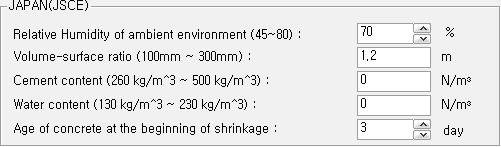

JAPAN(JSCE) |
.gif)
Elastic
modulus of concrete at the age of 28 days
: 28일 탄성계수
Relative
Humidity of ambient environment(40-80)
: 외기 습도
Volume-surface
Ratio(v/s) : 체적-표면적비
Cement
content (260 kg/m^3 ~ 500 kg/m^3) : 단위체적당
사용한 시멘트 량
Water
content (130 kg/m^3 ~ 230 kg/m^3) : 단위체적당
사용한 물 량
Age
of concrete at the beginning of shrinkage
: 타설후 건조수축 시작 시간 |

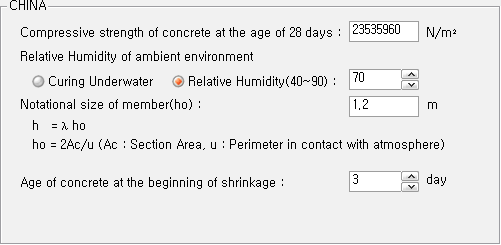

CHINA |
.gif)
Compressive
strength of concrete at the age of 28 days
: 28일 압축강도
Relative
Humidity of ambient environment(40-99)
: 외기 습도
Curving
Underwater : 수중양생
Relative
Humidity(40~90) : 상대습도
Notational
size of member : 구조물의 기하형상 치수

1. 단면변화로 인해 요소별로 "h" 값이 다른 경우에는
Change
Element Dependent Material Property
에서 요소별 "h"를
입력한다.
2. 시공단계 합성단면을 사용한 경우에는 Composite
Section for Construction Stage 에서 파트별 "h"
값을 직접 입력해야 한다.
Type
of cement : 시멘트 종류
Age
of concrete at the beginning of shrinkage :
타설후 건조수축 시작 시간
: 자동계산된
시간의존적 재료특성을 그래프 형식으로 출력합니다.
|
China
(JTG D62-2004) |

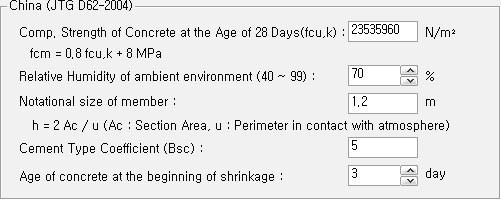

.gif)
Compressive
strength of concrete at the age of 28 days(fcu,k)
: 28일 압축강도
Relative
Humidity of ambient environment(40-99)
: 외기 습도
Notational
size of member : 구조물의 기하형상 치수

1. 단면변화로 인해 요소별로 "h" 값이 다른 경우에는 Change Element Dependent Material
Property 에서 요소별 "h"를 입력한다.
2. 시공단계 합성단면을 사용한 경우에는 Composite
Section for Construction Stage 에서 파트별 "h"
값을 직접 입력해야 한다.
Cement
Type Coefficient (Bsc) : 시멘트 종류에 따른 계수
Age
of concrete at the beginning of shrinkage :
타설후 건조수축 시작 시간
: 자동계산된 시간의존적 재료특성을 그래프 형식으로 출력합니다.
|

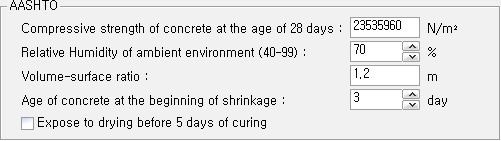

AASHTO |
.gif)
Compressive
strength of concrete at the age of 28 days
: 28일 압축강도
Relative
Humidity of ambient environment(40-99)
: 외기 습도
Volume-surface
ratio : 구조물의 기하형상 치수
Age
of concrete at the beginning of shrinkage :
타설후 건조수축 시작 시간
Expose
to drying before 5 Days of curing : AASHTO Shrinkage
and Creep 5.4.2.3 에 따라 Creep&Shrinkage의 영향을
20% 증가시킵니다. |

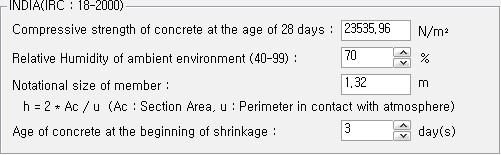

INDIA
(IRC:18-2000) |
.gif)
Compressive
strength of concrete at the age of 28 days
: 28일 압축강도
Relative
Humidity of ambient environment(40-99)
: 외기 습도
Notational
size of member : 구조물의 기하형상 치수

1. 단면변화로 인해 요소별로 "h" 값이 다른 경우에는 Change
Element Dependent Material Property 에서 요소별 "h"를
입력한다.
2. 시공단계 합성단면을 사용한 경우에는 Composite Section for Construction
Stage 에서 파트별 "h" 값을 직접 입력해야 한다.
Age
of concrete at the beginning of shrinkage
: 타설후 건조수축 시작 시간 |

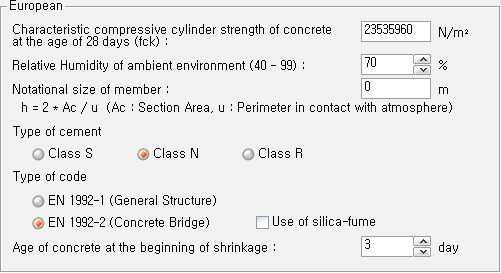

European |
.gif)
Characteristic
compressive cylinder strength of concrete at the
age of 28 days (fck) : 28일 압축강도
Relative
Humidity of ambient environment (40-99)
: 외기 습도
Notational
size of member : 구조물의 기하형상 치수

1. 단면변화로 인해 요소별로 "h" 값이 다른 경우에는 Change
Element Dependent Material Property 에서 요소별 "h"를
입력한다.
2. 시공단계 합성단면을 사용한 경우에는 Composite Section for Construction
Stage 에서 파트별 "h" 값을 직접 입력해야 한다.
Type
of Cement : 시멘트 종류
Type
of Code : 구조물 종류 (빌딩을 포함한 일반 콘크리트 구조물 /
콘크리트 교량)
Age
of concrete at the beginning of shrinkage
: 타설후 건조수축 시작 시간 |
User
Defined |

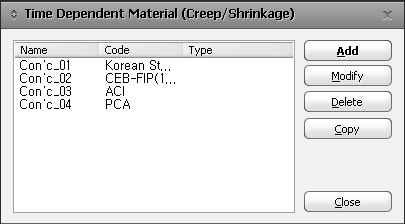

시간의 흐름에 따른 재료의 특성을 Time
Dependent Material(Creep/Shrinkage) Function에서
함수를 사용자가 직접 정의하여 적용하는 방법입니다.
Creep Function
적용할 크리프 함수를 선택합니다. 정의된 크리프 함수가 없는 경우나 미리 정의된 함수를
수정하는 경우는 를
클릭하여 "Time Dependent
Material(Creep/Shrinkage) Function" 대화상자를
호출합니다.
Loading Age
: 해당재료의 부재에 하중이 재하되기 시작할 때 부재의 재령
: 정의한 크리프 함수에 Loading Age를 적용하여
목록에 등록합니다.
: 등록된 크리프
함수에 적용될 Loading Age를 수정합니다.
: 등록된 크리프
함수과 Loading Age를 삭제합니다.
Shrinkage Strain Function
적용할 건조수축 함수를 선택합니다. 정의된 건조수축 함수가 없는 경우나 미리 정의된
함수를 수정하는 경우는 를 클릭하여 를
클릭하여 "Time Dependent
Material(Creep/Shrinkage) Function" 대화상자를
호출합니다. |
